INCH-POUND MS18205C
3 June 2013
SUPERSEDING MS18205B
23 June 1972
DETAIL SPECIFICATION SHEET
PIN, STRAIGHT HEADED
Reinstated after 10 July 2009 and may be used for new and existing designs and acquisitions.
This specification is approved for use by all Departments and Agencies of the Department of Defense.
The requirements for acquiring the product described herein shall consist of this specification sheet and
MIL-DTL-28748.
Designator MS18205
NOTES:
1. Dimensions are in inches.
2. Unless otherwise specified, tolerance is ±.016 inch (0.41 mm).
3. Metric equivalents are given for information only.
4. Material: Corrosion resistant steel in accordance with ASTM A484/A484M and
ASTM A582/A582M, classes 302, 303, 303Se, 304, 316.
5. Passivated in accordance with SAE AMS2700.
6. Design standard for use with MS18203.

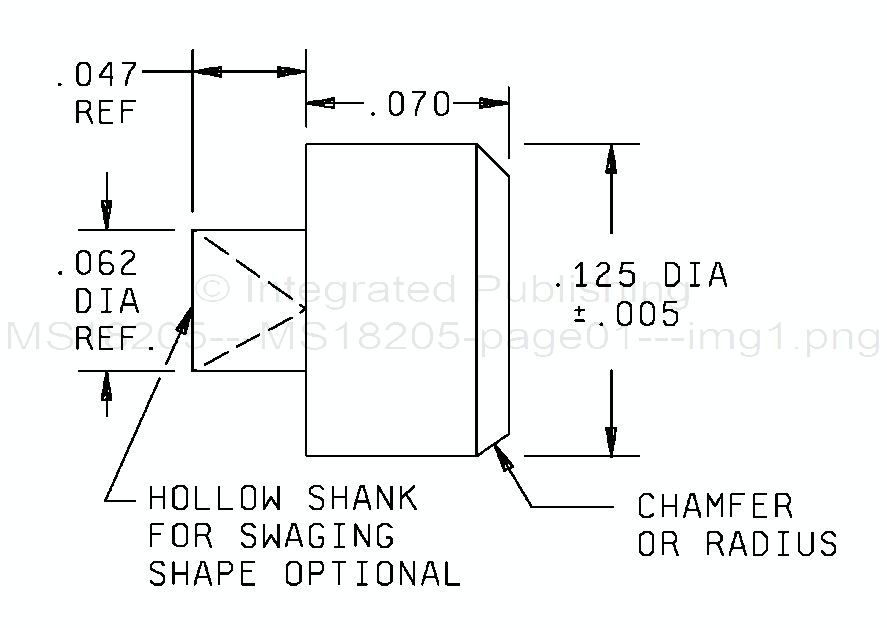

FIGURE 1. Pin polarizing configuration.
AMSC N/A FSC 5935
