MS20027F
NOTES:
1. Normal keyway position. For other keyway positions, see MIL-DTL-27599.
2. Diameters A, D and Q shall be concentric within .015 T.I.R.
3. Diameters D and I shall be concentric within .005 T.I.R. at MMC.
4. Diameter A with respect to diameter B, and diameter D with respect to diameter N, shall be concentric at MMC.
5. Dimensions are in inches. Metric equivalents are given for information only.
6. Insert front surface shall be flat within .005 T.I.R.
7. The point at which a gauge pin having the same basic diameter as the mating contact and a square face, touches socket contact spring.
8. The gauge features for GG shall be CC smaller than their MMC size.

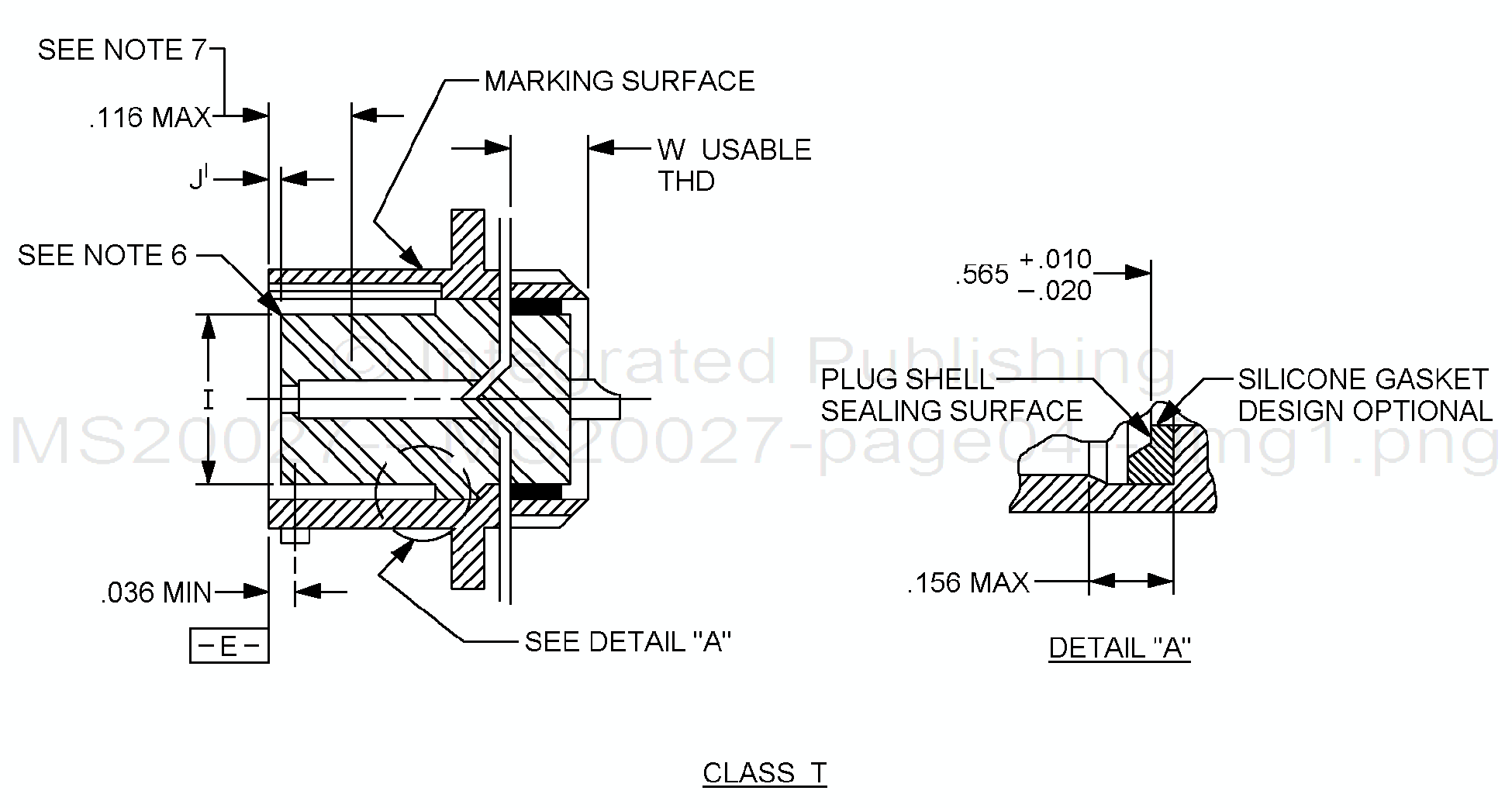

FIGURE 1. Line plug - Continued.
4
