MS20028G
NOTES:
1. The point at which a gauge pin having the same basic diameter as the mating contact and a square face, touches socket contact spring.
2. Insert front surface shall be flat within .005 T.I.R.
3. Diameter D with respect to diameter S shall be concentric at MMC.
4. Diameters A and N shall be concentric within .008 T.I.R.
5. Dimensions are in inches. Metric equivalents are given for information only.
6. Normal keyway position. For other keyway positions, see MIL-DTL-27599.
7. Finish: A - Bright cadmium (see MIL-DTL-27599).
B - Olive drab (see MIL-DTL-27599).
F - Electroless nickel in accordance with SAE-AMS-C-26074, class 3 or 4, grade B, finish dull.
T - Nickel flurocarbon (see MIL-DTL-27599). Z - Zinc nickel (see MIL-DTL-27599).

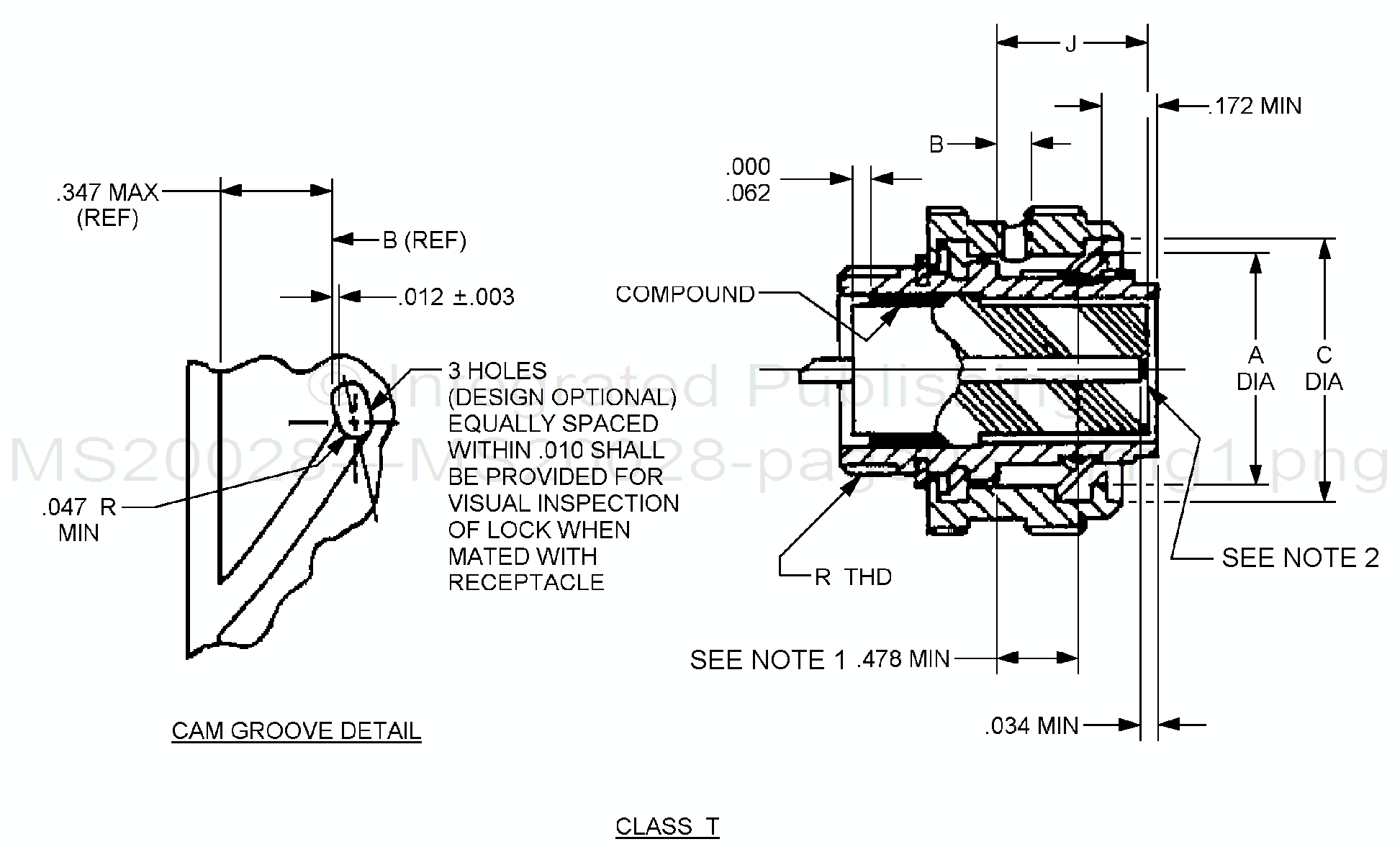

FIGURE 1. Plug - Continued.
3
