MS20029G
NOTES:
1. Dimensions are in inches. Metric equivalents are given for information only.
2. Insert front surface shall be flat within .005 T.I.R.
3. Diameters A, D, M, Q and Z shall be concentric within .015 T.I.R.
4. Diameters D and I shall be concentric within .005 T.I.R. at MMC.
5. Diameter A with respect to diameter B, and diameter D with respect to diameter N, shall be concentric at MMC.
6. Sides of groove may have 5° max taper.
7. .062 ± .005 dia., 3 lockwire holes, shell sizes 9 through 25.
8. Normal keyway position. For other keyway positions, see MIL-DTL-27599.
9. The point at which a gauge pin having the same basic diameter as the mating contact and a square face, touches socket contact spring.
10. The gauge features for GG shall be CC smaller than their MMC size.

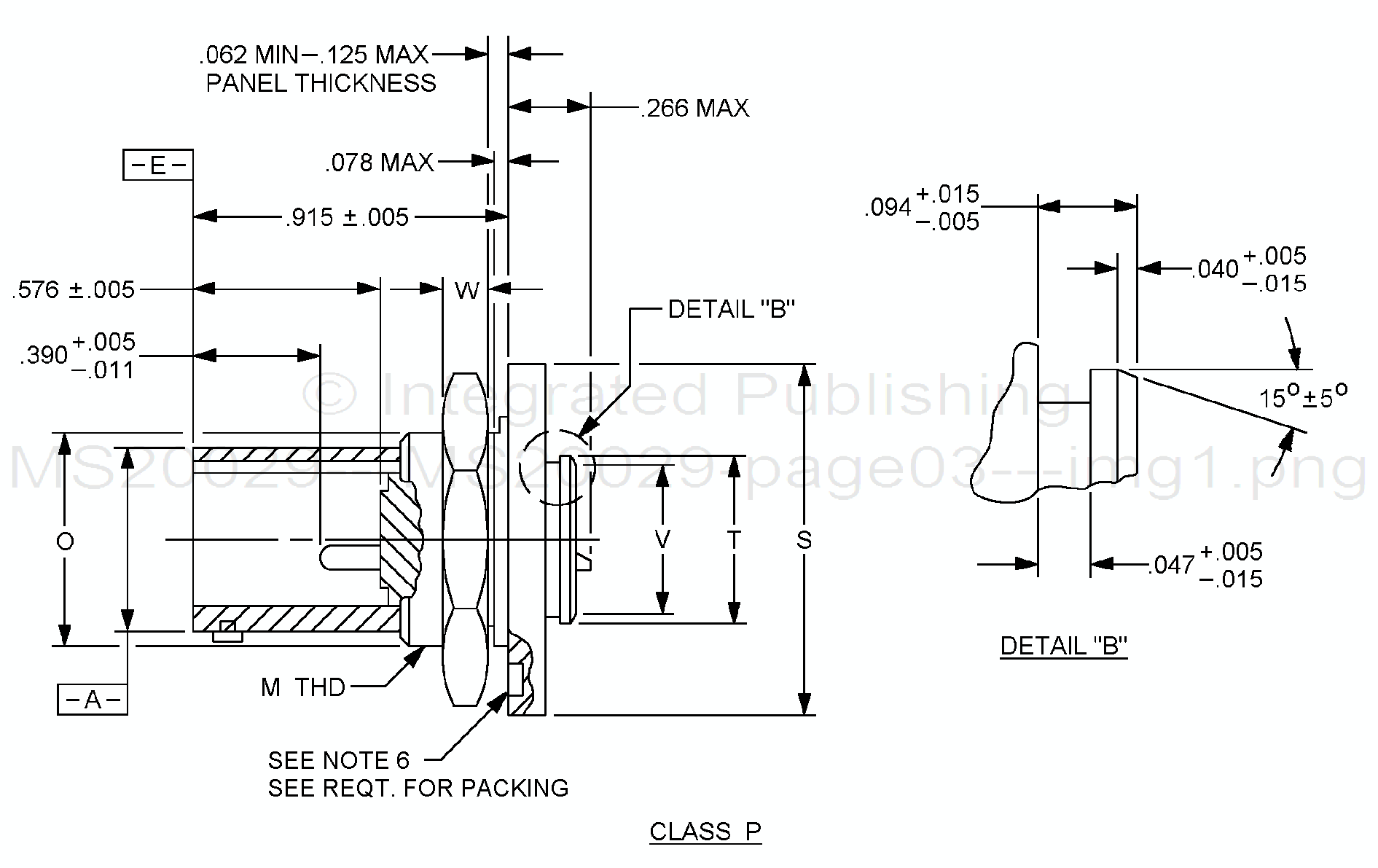

FIGURE 1. Receptacle, jam nut mounting - Continued.
3
