INCH-POUND
MS24264R
20 August 2009
SUPERSEDING MS24264P
6 February 2004
DETAIL SPECIFICATION SHEET
CONNECTORS, RECEPTACLE, ELECTRICAL, FLANGE MOUNTING, MINIATURE, CLASSES E, F, G AND R
Inactive for new design for 14 November 1977.For new design, use MIL-DTL-83723, series III, which is interchangeable.
This specification is approved for use by all Departments and Agencies of the Department of Defense.
The requirements for acquiring the product described herein shall consist of this specification sheet and MIL-DTL-26500.

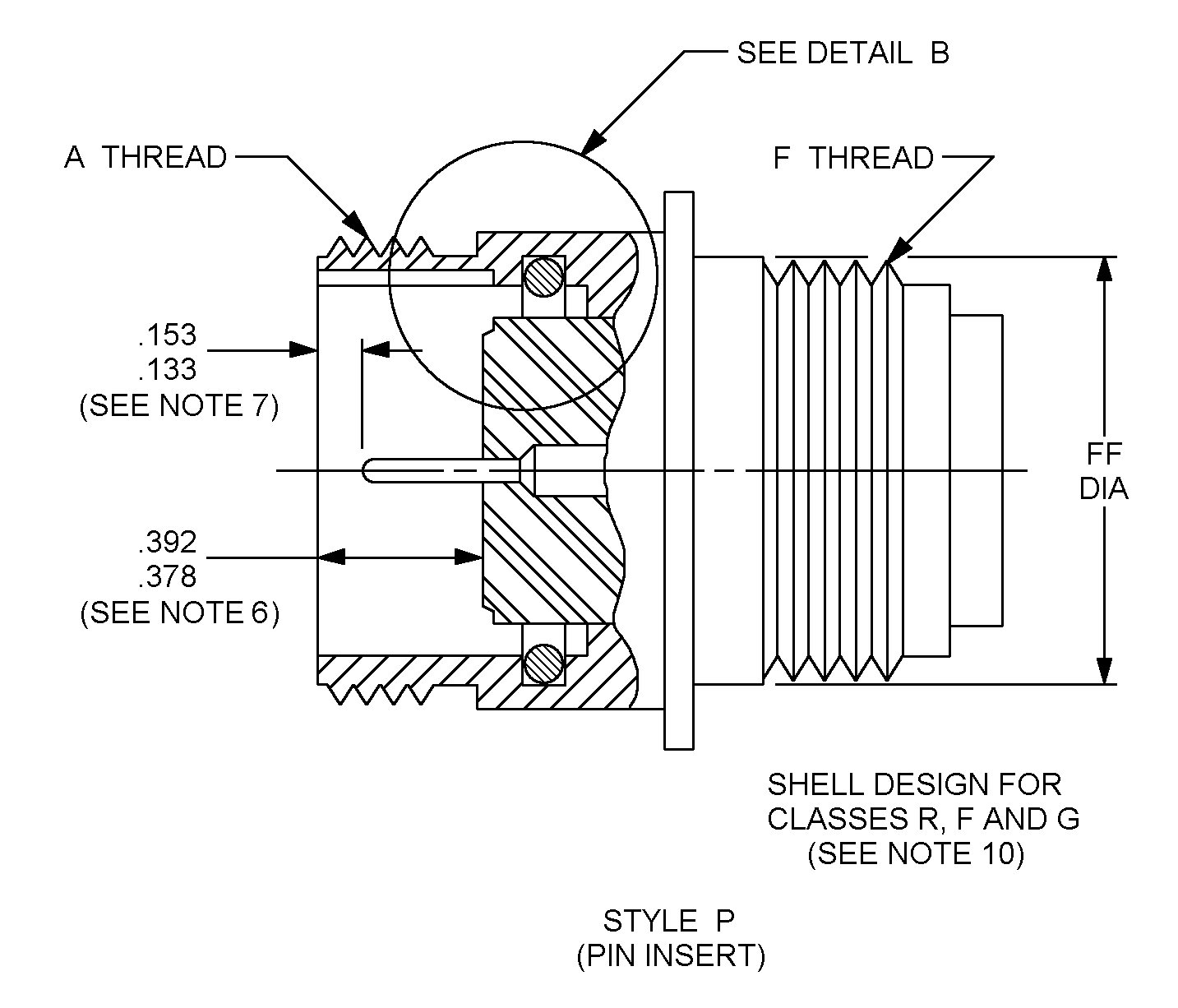

FIGURE 1. Receptacle, threaded for classes F, G and R.
AMSC N/A FSC 5935
