MS24286E
Inches |
mm |
Inches |
mm |
.003 .015 .018 .020 .022 .031 .042 .046 .058 .062 .092 .093 .109 .117 .121 .177 |
0.08 0.38 0.46 0.51 0.56 0.79 1.07 1.17 1.47 1.57 2.34 2.36 2.77 2.97 3.07 4.50 |
.185 .253 .257 .258 .285 .313 .321 .395 .407 .586 .596 .682 .879 .998 1.008 1.178 1.198 |
4.70 6.43 6.53 6.55 7.24 7.95 8.15 10.03 10.34 14.88 15.14 17.32 22.33 25.35 25.60 29.92 30.43 |
Style P (pin insert) Hermetic (H) receptacles

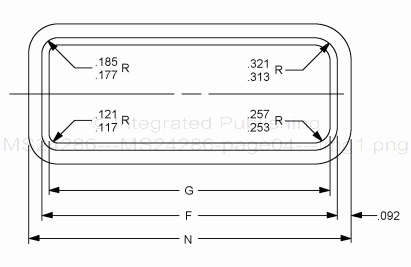

FIGURE 2. Connector dimensions and configurations
