INCH-POUND
MS27034K
20 August 2009 SUPERSEDING MS27034J
6 February 2004
DETAIL SPECIFICATION SHEET
CONNECTORS, RECEPTACLE, ELECTRICAL, PIN INSERT, CYLINDRICAL, MINIATURE, HERMETIC, SOLDER MOUNT
Inactive for new design after 14 November 1977. For new design, use MIL-DTL-83723, series III.
This specification is approved for use by all Departments and Agencies of the Department of Defense.
The requirements for acquiring the product described
herein shall consist of this specification sheet and MIL-DTL-26500.

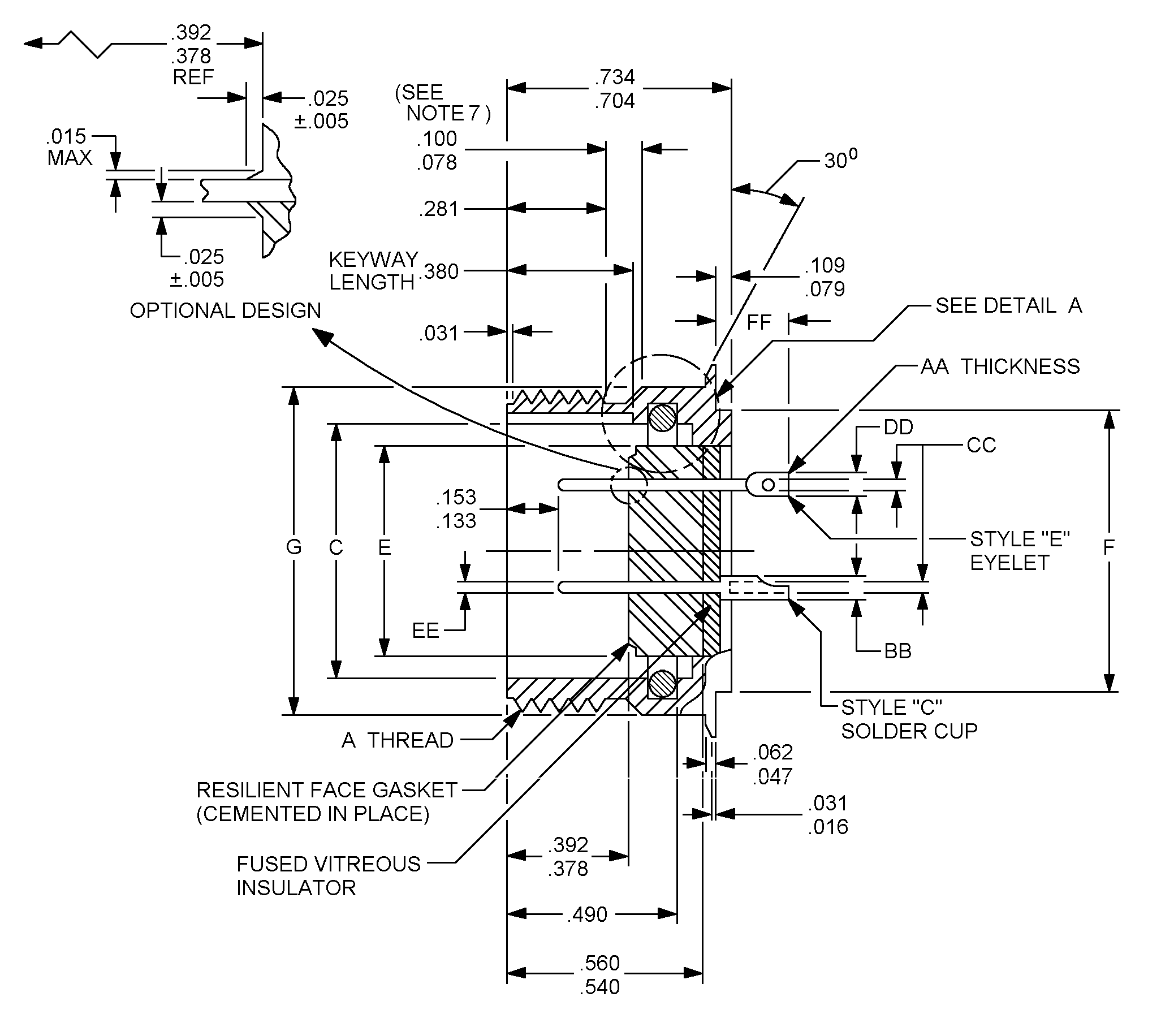

FIGURE 1. Receptacle, class H (hermetic) dimensions.
AMSC N/A FSC 5935
