INCH-POUND
MS27145C
17 June 2003
SUPERSEDING MS27145B
16 February 1988
DETAIL SPECIFICATION SHEET
CONNECTOR, PLUG, ELECTRICAL, NO. 14 AWG, DOUBLE CONTACT, WATERPROOF
This specification is approved for use by all Departments and Agencies of the Department of Defense.
The requirements for acquiring the product described herein shall consist of this specification.
Inches |
mm |
Inches |
mm |
.010 |
.25 |
.437 |
11.10 |
.045 |
1.14 |
.625 |
15.87 |
.130 |
3.30 |
.660 |
16.76 |
.160 |
4.00 |
.92 |
12.55 |
.244 |
6.20 |
.690 |
23.37 |
.250 |
6.35 |
1.390 |
35.3 |

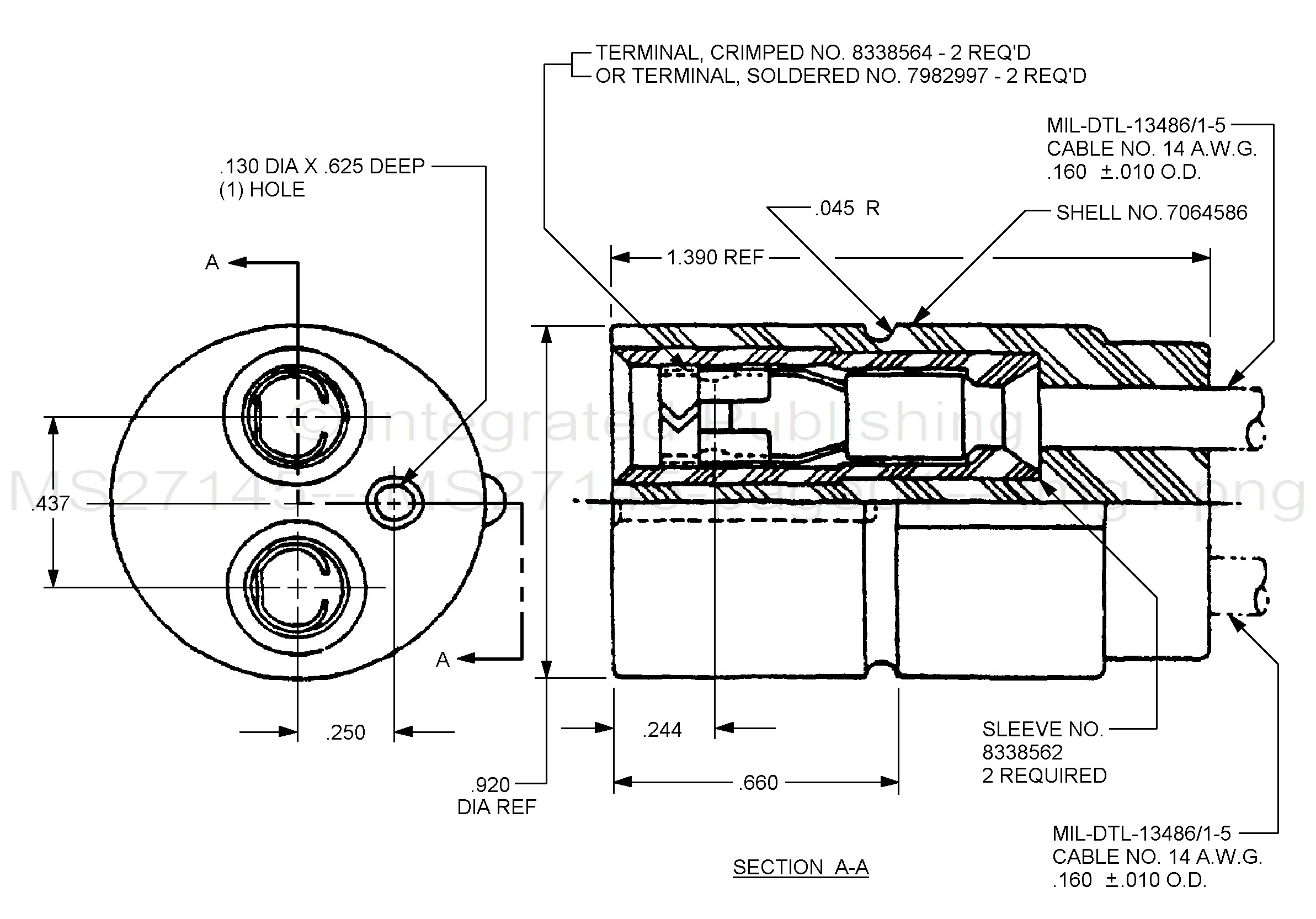

FIGURE 1. Configuration and dimensions.
