MS272828
Inches |
mm |
Inches |
mm |
.002 .004 .005 .015 .030 .203 .219 |
.051 .102 .127 .381 .762 5.159 5.568 |
.281 .312 .437 .500 1.062 6.858 |
7.137 7.937 11.112 12.700 26.987 174.19 |
NOTES:
1. The procurement specification for this part is MIL-DTL-38159.
2. Material: 8rass, in accordance with ASTM-836/836M, ASTM-8121/8121M or
ASTM-8124/8124M. See procurement specification.
3. Finish: See procurement specification.
4. Unless otherwise specified, machined surfaces 125 √ or better in accordance with ASME-846.1.
5. Remove all burrs and break all edges.
6. All dimensions shown are for finished part after plating.
7. Dimensions in inches. Unless otherwise specified, tolerance is ± 0.005 inch.
8. All diameters must be concentric to each other within 0.004 TIR.
9. Contact, electrical - plug connector, ramp power. 416/240 volts, small, female. For use with
MS27282-1.

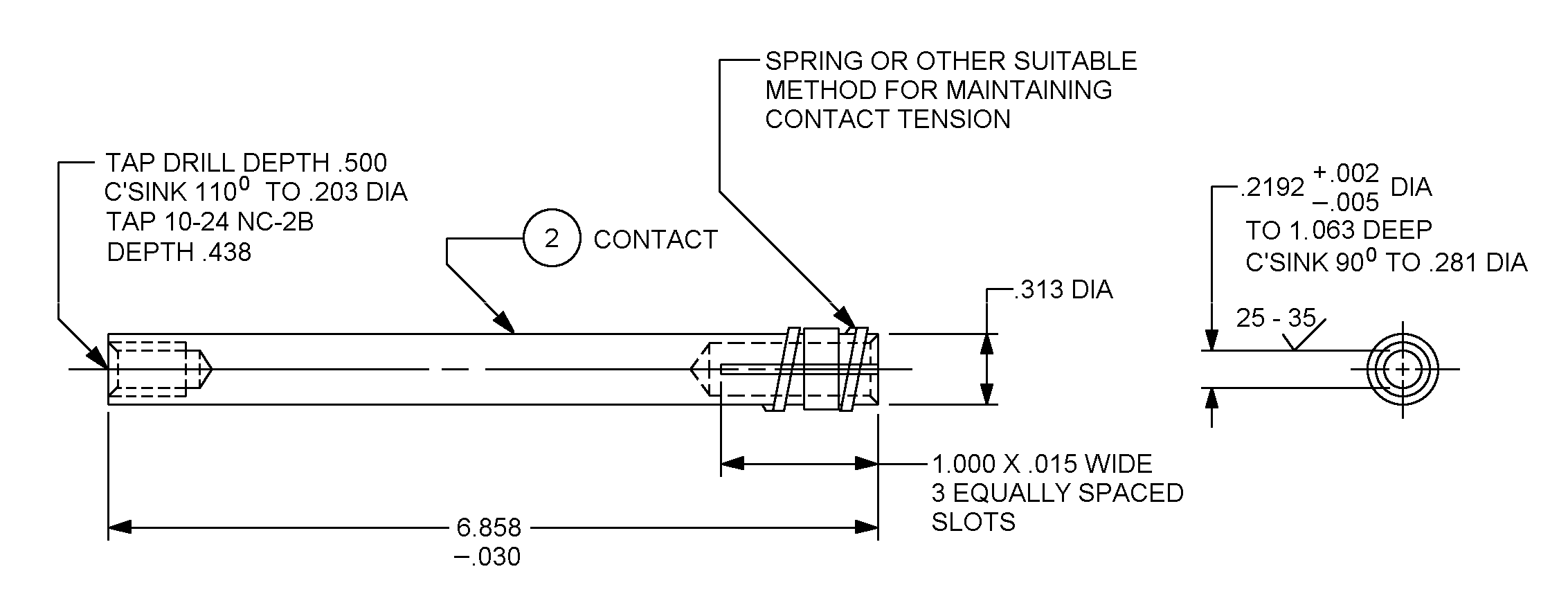

FIGURE 2. Configuration and dimensions (contact).
3
