INCH-POUND
MS27283C
21 February 2013
SUPERSEDING MS27283B (USAF)
8 March 1974
DETAIL SPECIFICATION SHEET
CONTACT, ELECTRICAL - PLUG CONNECTOR, RAMP POWER,
416/240 VOLTS, LARGE, FEMALE
This specification is approved for use by all Departments and
Agencies of the Department of Defense.
The requirements for acquiring the product described herein shall consist of this specification sheet and MIL-DTL-38159.
NOTES:
1. Material: Copper alloy in accordance with MIL-DTL-38159.
2. Finish: Finish in accordance with MIL-DTL-38159.
3. Unless otherwise specified machined surface 125 or better in accordance with ASME B46.1.
4. Remove all burrs and sharp edges.
5. All dimensions shown are for finished part after plating.
6. Dimension are in inches, metric equivalents are given for information only.
7. All diameters must be concentric to each other within 0.004 TIR.
8. Use with insert MS27282.

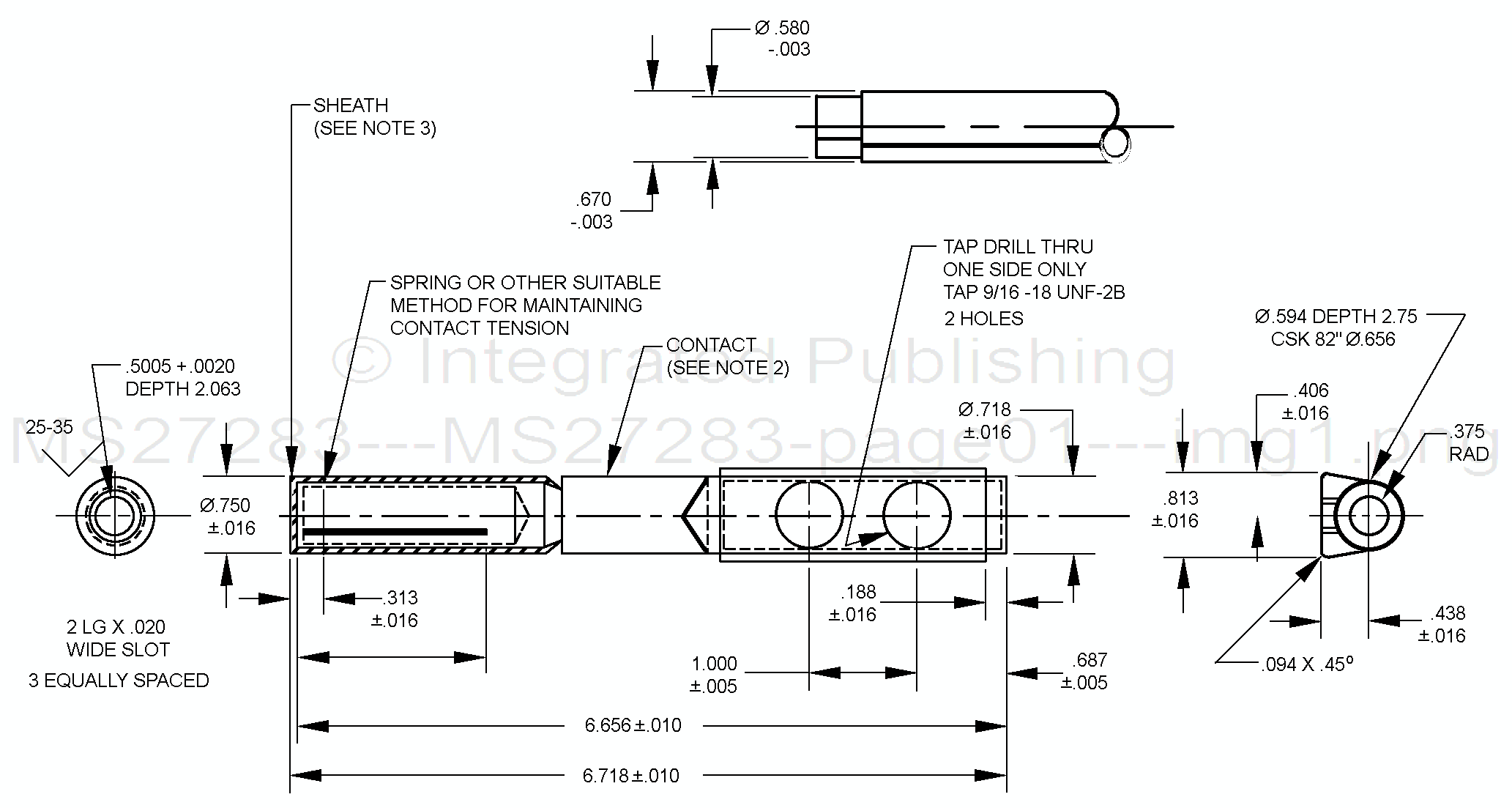

FIGURE 1. Contact, ramp power, 412/240 volts, large female.
AMSC N/A FSC 5935
