INCH-POUND
MS27285C
7 January 2009
SUPERSEDING MS27285B
17 June 2003
DETAIL SPECIFICATION SHEET
CONNECTOR, PLUG, ELECTRICAL-RAMP POWER,
416/240 VOLTS, FEMALE
This specification is approved for use by all Departments and Agencies of the Department of Defense.
The requirements for acquiring the product described herein shall consist of this specification sheet and MIL-DTL-38159.
NOTES:
1. The procurement specification for this part is MIL-DTL-38159.
2. MS27285-6 connector furnished with MS27271-1, -2, -3 and - 4 grommets.
3. Referenced documents shall be of the issue in effect on date of Invitation for Bid.
4. For design feature purposes, this standard takes precedence over procurement documents referenced herein.
5. Hose clamp in accordance with A-A-52506 or equal.
6. Part or Identifying Number (PIN): MS27285-1.

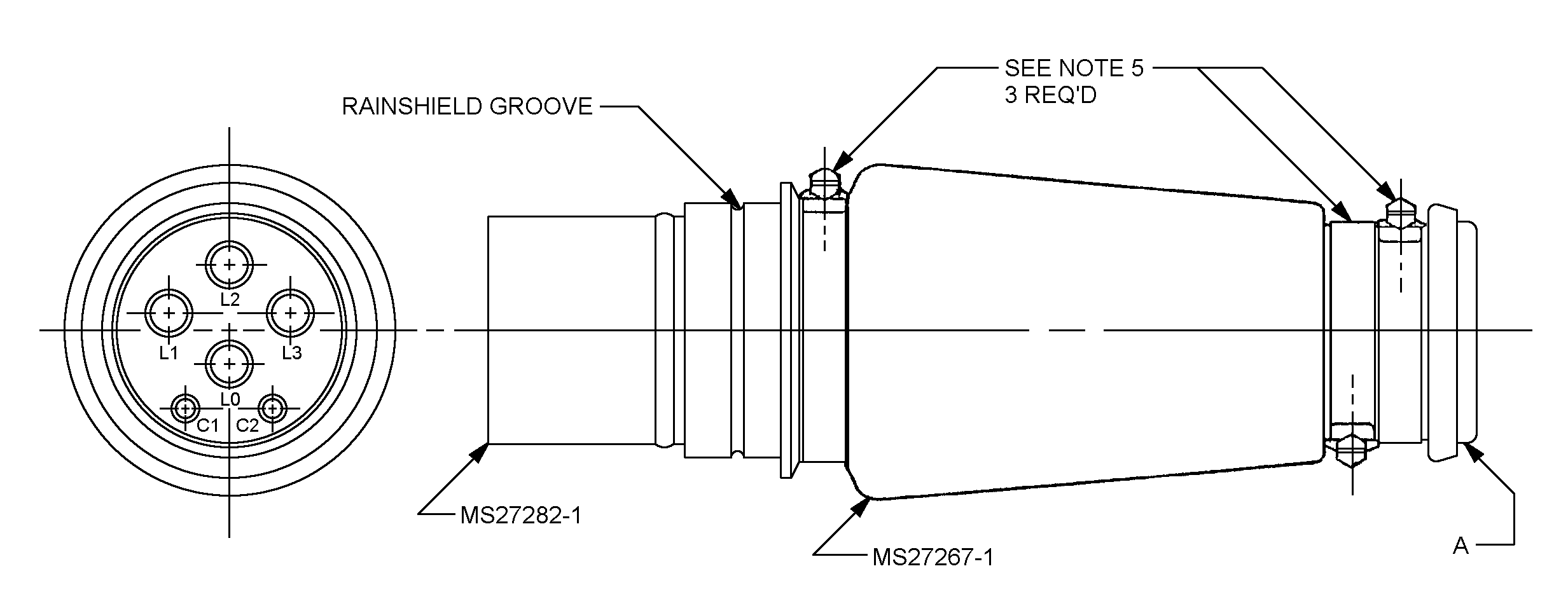

FIGURE 1. Configuration and dimensions for MS27285-1.
AMSC N/A FSC 5935
