MS27466K
Shell size |
K +.015 -.000 |
L (class E) max see basic |
L (class P) max see basic |
L (class T) max see basic |
M +.000 -.005 |
P dia +.010 -.005 |
R BSC |
S ± .020 |
9 |
.085 |
.531 |
.953 |
.531 |
.632 |
.128 |
.3595 |
.938 |
11 |
.406 |
1.031 |
||||||
13 |
.453 |
1.125 |
||||||
15 |
.4845 |
1.219 |
||||||
17 |
.531 |
1.312 |
||||||
19 |
.578 |
1.438 |
||||||
21 |
.115 |
1.047 |
.602 |
.625 |
1.562 |
|||
23 |
.147 |
.6875 |
1.688 |
|||||
25 |
1.156 |
.750 |
1.812 |

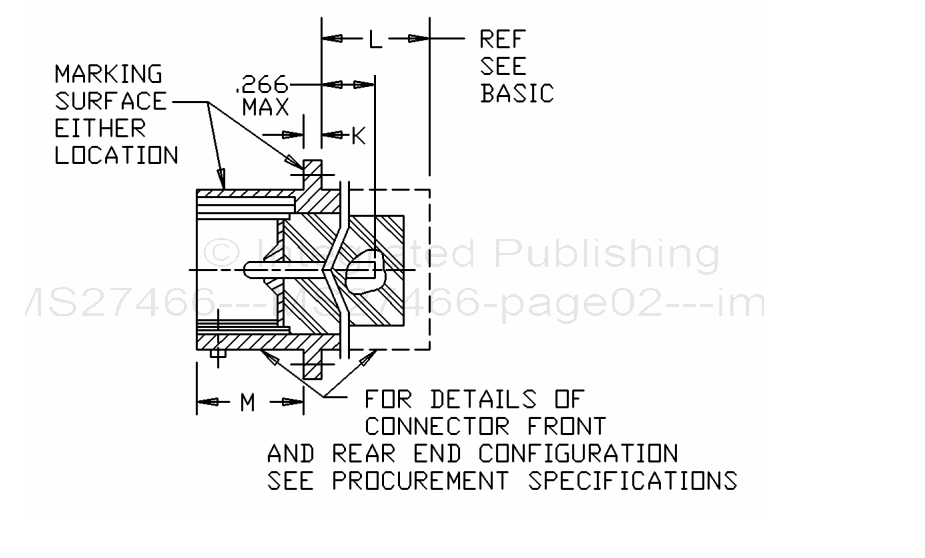

FIGURE 1. Receptacle, classes E, T and P - Continued.
