MS27469H
Shell size |
K + .031 - .000 |
L max |
M + .031 - .000 |
R BSC |
S ± .016 |
T dia + .010 - .005 |
w min full THO |
V THO Class 2A UNEF (plated) |
9 |
.062 |
1.093 |
.659 |
.3595 |
.938 |
.128 |
.250 |
.6875 - 24 |
11 |
.406 |
1.031 |
.8125 - 20 |
|||||
13 |
.453 |
1.125 |
.9375 - 20 |
|||||
15 |
.4845 |
1.219 |
1.0625 - 18 |
|||||
17 |
.531 |
1.312 |
1.1875 - 18 |
|||||
19 |
.578 |
1.438 |
1.3125 - 18 |
|||||
21 |
.625 |
1.562 |
1.4375 - 18 |
|||||
23 |
.6875 |
1.688 |
.147 |
1.5625 - 18 |
||||
25 |
.750 |
1.812 |
1.6875 - 18 |

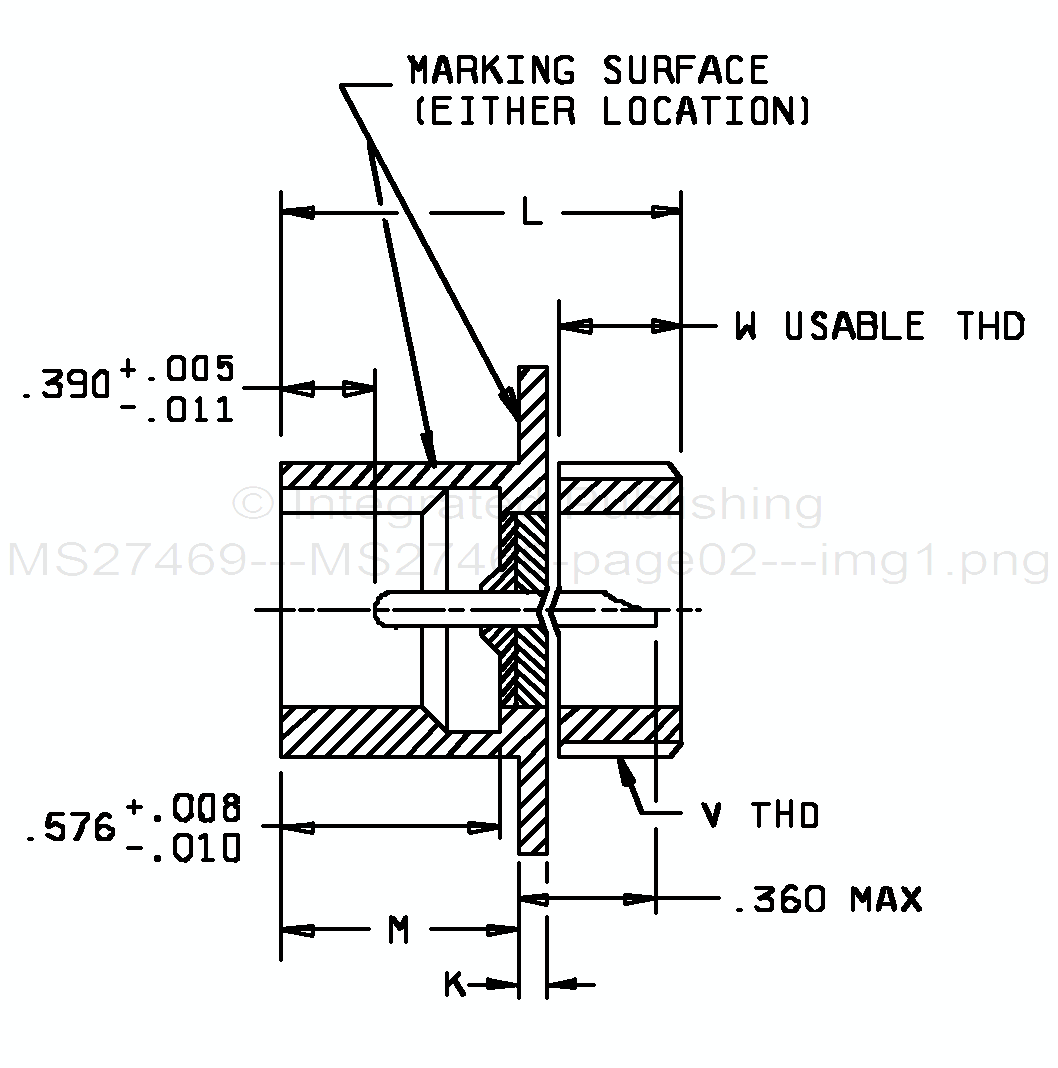

FIGURE 1. Receptacle, class Y - Continued.
2
