MS27475G
Shell size |
LP max |
LS max |
Q max dia |
R BSC |
S max |
T +.010 -.005 |
VV Thread Class 2A UNEF |
8 |
.250 |
.375 |
1.078 |
.297 |
.828 |
.120 |
.5625 - 24 |
10 |
1.256 |
.3595 |
.954 |
.6875 - 24 |
|||
12 |
1.391 |
.406 |
1.047 |
.8125 - 20 |
|||
14 |
1.516 |
.453 |
1.141 |
.9375 - 20 |
|||
16 |
1.641 |
.4845 |
1.234 |
1.0625 - 18 |
|||
18 |
1.766 |
.531 |
1.328 |
1.1875 - 18 |
|||
20 |
1.891 |
.578 |
1.453 |
1.3125 - 18 |
|||
22 |
.375 |
.406 |
2.016 |
.625 |
1.578 |
1.4375 - 18 |
|
24 |
2.204 |
.6875 |
1.703 |
.147 |
1.5625 - 18 |

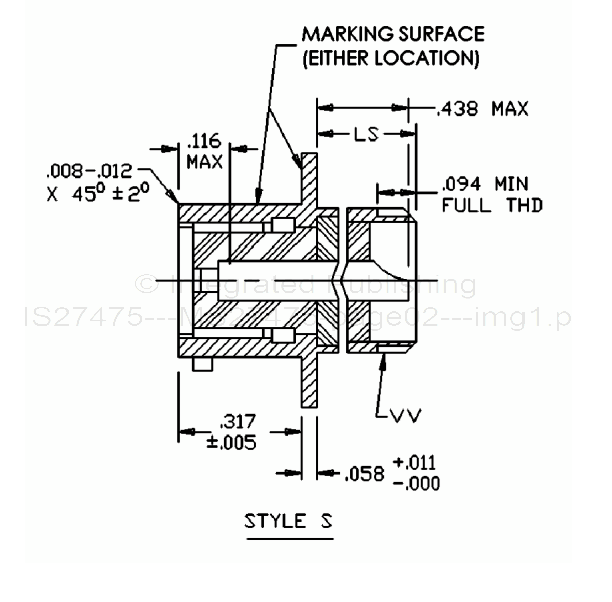

FIGURE 1. Receptacle, class Y - Continued.
2
