MS27499J
Shell size |
L max |
M max |
R BSC |
S max |
T +.010 -.005 |
8 |
.312 |
.453 |
.297 |
.828 |
.120 |
10 |
.578 |
.3595 |
.954 |
||
12 |
.703 |
.406 |
1.047 |
||
14 |
.828 |
.453 |
1.141 |
||
16 |
.953 |
.4845 |
1.234 |
||
18 |
1.062 |
.531 |
1.328 |
||
20 |
1.188 |
.578 |
1.453 |
||
22 |
1.312 |
.625 |
1.578 |
||
24 |
1.438 |
.6875 |
1.703 |
.147 |

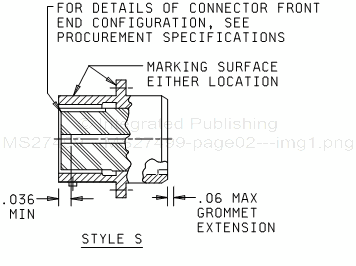

FIGURE 1. Receptacle, class E - Continued.
