MS27504D
Shell size |
A dia +.001 -.005 |
B dia +.000 -.016 over proj |
c dia +.006 -.002 |
D dia +.005 -.001 |
I dia max |
L max |
M max |
N dia +.005 -.006 |
8 |
.473 |
.563 |
.078 |
.362 |
.290 |
.312 |
.453 |
.412 |
10 |
.590 |
.680 |
.490 |
.418 |
.578 |
.540 |
||
12 |
.750 |
.859 |
.607 |
.532 |
.703 |
.689 |
||
14 |
.875 |
.984 |
.732 |
.657 |
.828 |
.814 |
||
16 |
1.000 |
1.103 |
.857 |
.782 |
.953 |
.939 |
||
18 |
1.125 |
1.233 |
.962 |
.871 |
1.062 |
1.039 |
||
20 |
1.250 |
1.358 |
.125 |
1.087 |
.996 |
1.188 |
1.164 |
|
22 |
1.375 |
1.483 |
1.212 |
1.121 |
1.312 |
1.289 |
||
24 |
1.500 |
1.610 |
1.337 |
1.246 |
1.438 |
1.414 |

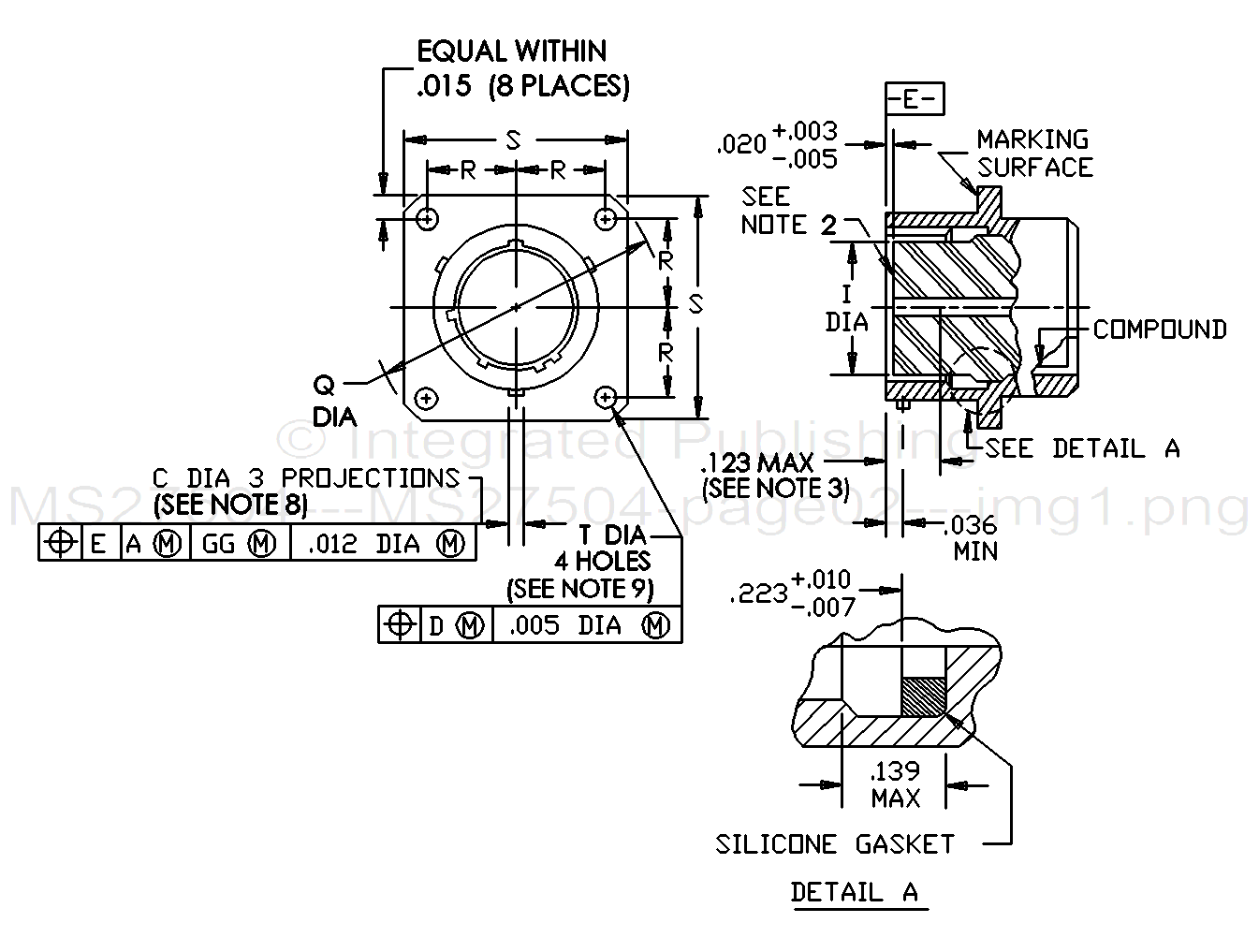

FIGURE 1. Receptacle, class E - continued.
