MS27508H
Shell size |
F max |
L max |
R BSC |
S max |
T +.010 -.005 |
AB max |
8 |
.146 |
.250 |
.297 |
.828 |
.120 |
.547 |
10 |
.3595 |
.954 |
.672 |
|||
12 |
.406 |
1.047 |
.844 |
|||
14 |
.453 |
1.141 |
.969 |
|||
16 |
.4845 |
1.234 |
1.094 |
|||
18 |
.531 |
1.328 |
1.219 |
|||
20 |
.168 |
.578 |
1.453 |
1.344 |
||
22 |
.625 |
1.578 |
1.469 |
|||
24 |
.6875 |
1.703 |
.147 |
1.594 |

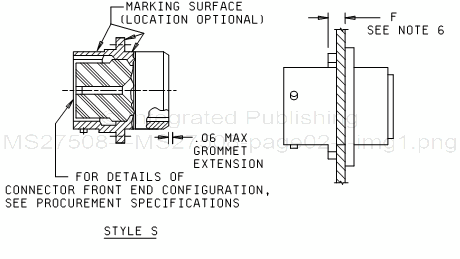

FIGURE 1. Receptacle - Continued.
