INCH-POUND
MS27613F
14 August 2009
SUPERSEDING MS27613E
6 February 2004
DETAIL SPECIFICATION SHEET
CONNECTORS, ELECTRICAL, RECEPTACLE, PANEL MOUNT, FIREWALL SERIES
Inactive for new design after 14 November 1977. For new design, use MIL-DTL-83723, series III, class K, which is interchangeable.
This specification is approved for use by all Departments and Agencies of the Department of Defense.
The requirements for acquiring the product described herein shall consist of this specification sheet and MIL-DTL-26500.

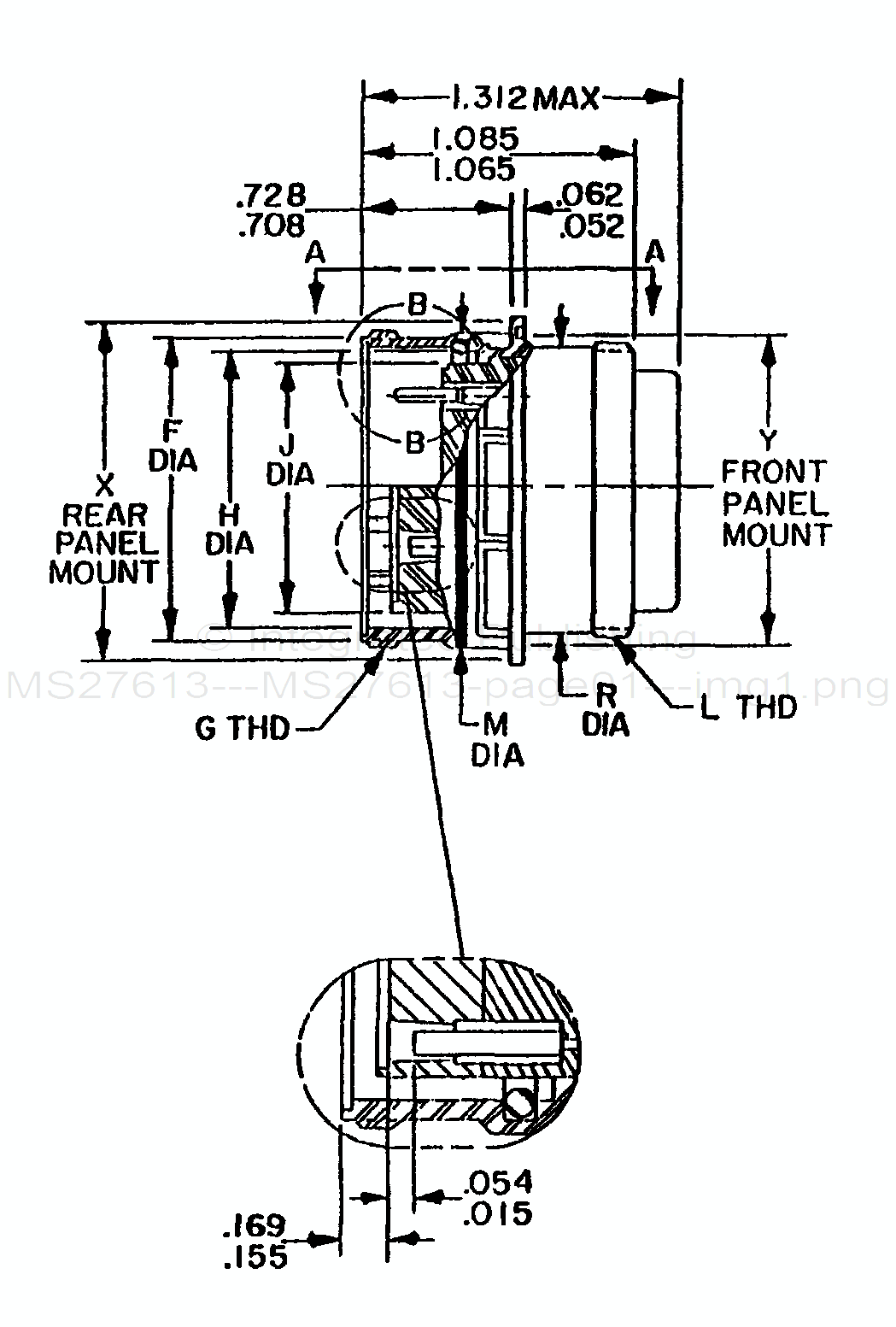

FIGURE 1. Receptacle dimensions.
AMSC N/A FSC 5935
