MS27614F
Inches |
mm |
Inches |
mm |
.015 |
0.38 |
.378 |
9.60 |
.025 |
0.64 |
.392 |
9.96 |
.054 |
1.37 |
.413 |
10.49 |
.062 |
1.57 |
.761 |
19.33 |
.093 |
2.36 |
.781 |
19.84 |
.133 |
3.38 |
1.065 |
27.05 |
.153 |
3.89 |
1.085 |
27.56 |
.155 |
3.94 |
1.312 |
33.52 |
.169 |
4.29 |

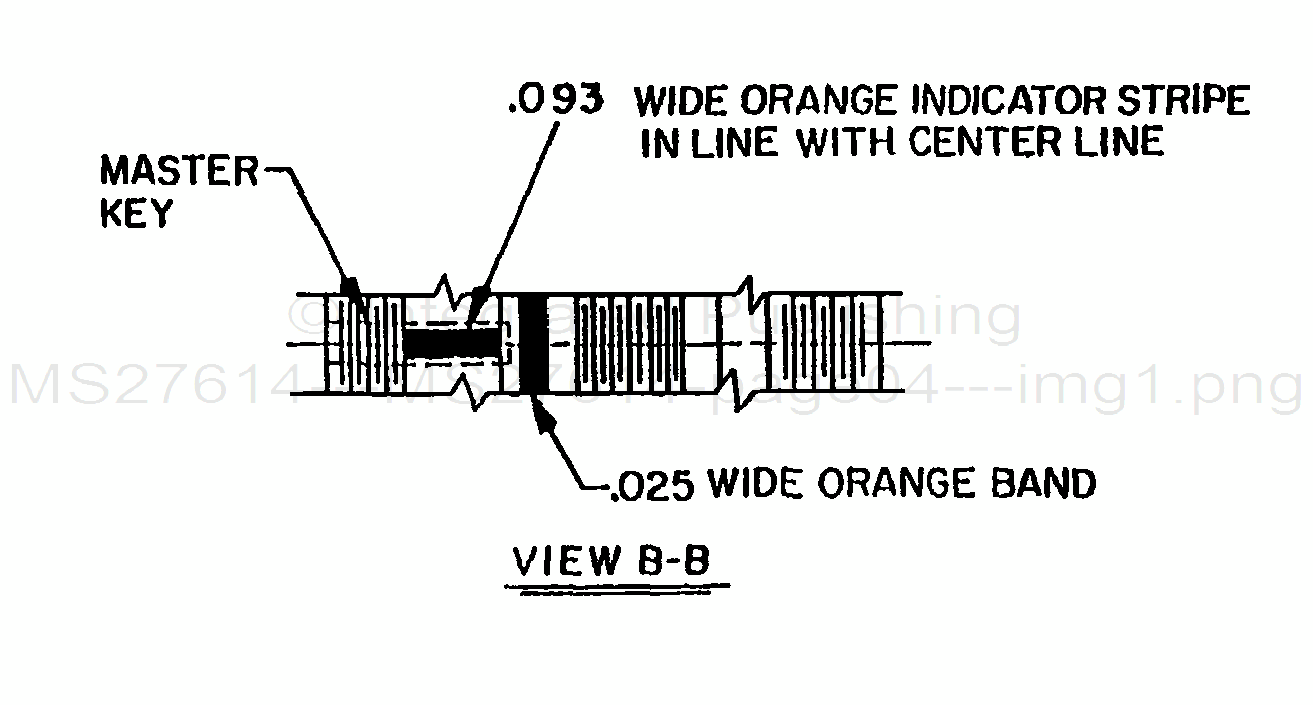

FIGURE 1. Receptacle dimensions - Continued.
