MS27652 Connectors, Receptacle, Electrical, Wall Mounting Flange, Crimp Type, Bayonet Coupling, Series I

Pages 1 - 2 - 3 - 4 - 5 - 6


MS27652B




Inches          mm


Inches          mm


Inches          mm


Inches          mm


.001           .025

.004           .102

.005           .127

.006           .152

.007           .178

.008           .203


.010           .254

.012           .305

.015           .381

.016           .406

.020           .508

.022           .559


.031            .787

.036            .914

.063          1.600

.123          3.124

.126          3.200

.156          3.962


.219           5.562

.266           6.756

.390           9.906

.516         13.106

.560         14.224

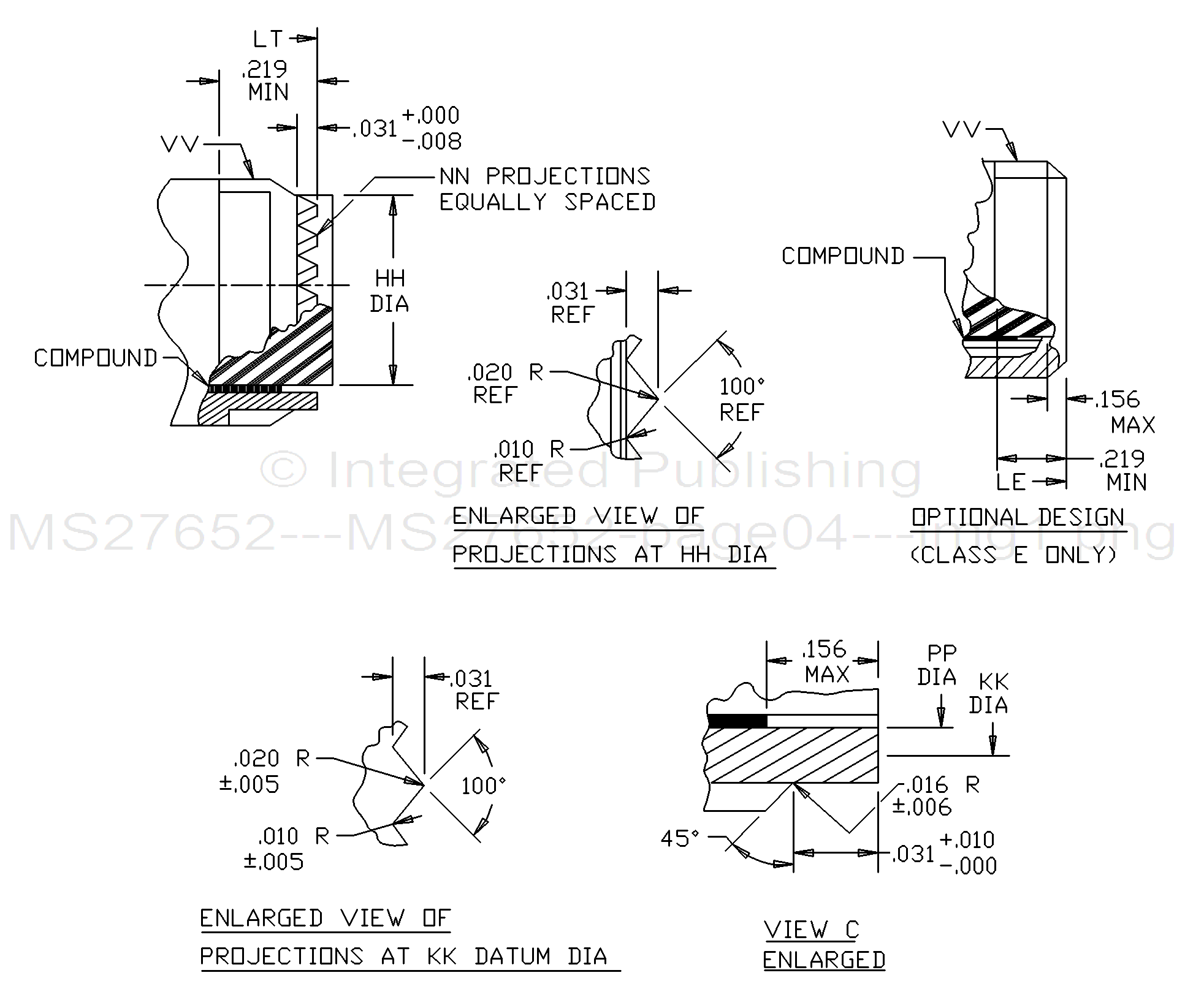

FIGURE 1.  Receptacle, classes E and T - Continued.
