MS3111E
NOTES:
1. Dimensions are in inches. Metric equivalents are given for information only.
2. True position (TP) tolerances specified are in accordance with ASME Y14.5M.
3. Intermateability dimensions shall be in accordance with MIL-DTL-26482.
4 Lockwashers may be captivated.

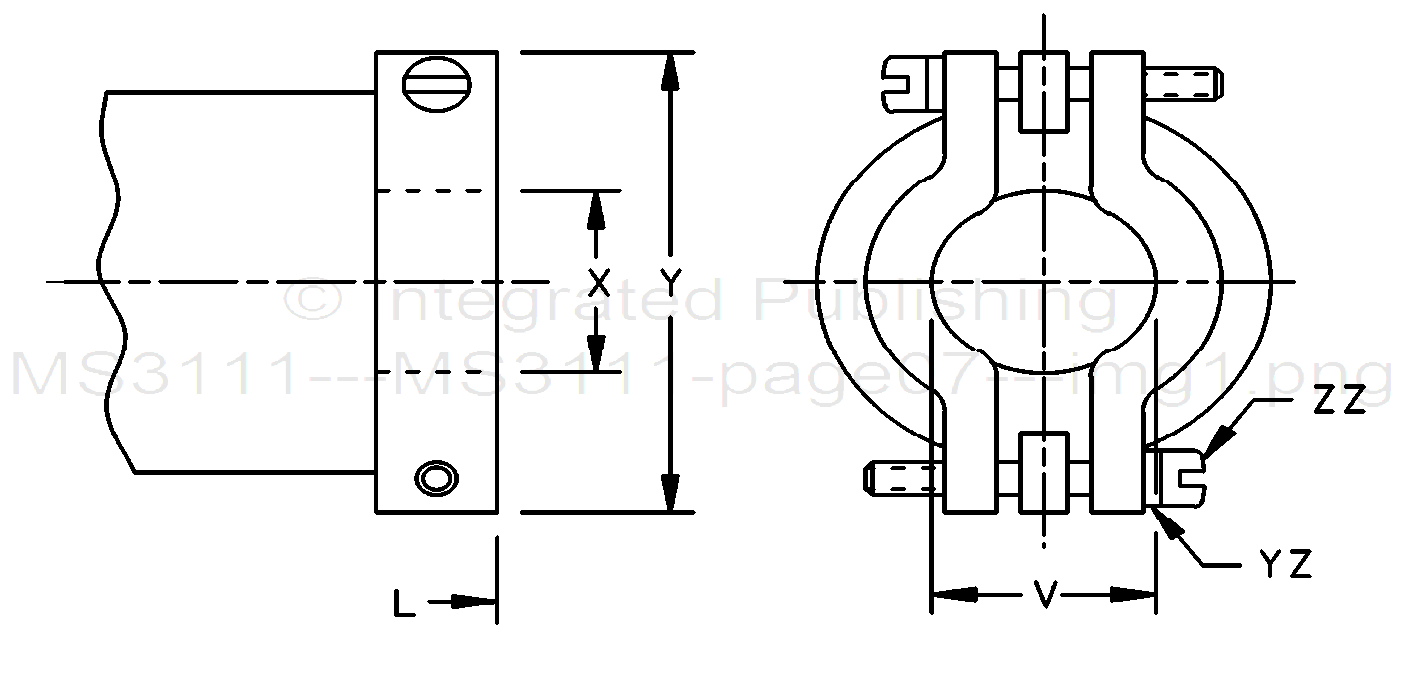

FIGURE 4. Plug, rear accessories configurations, class J.
7
