INCH-POUND
MS3113J
4 June 2009 SUPERSEDING MS3113H
10 June 1993
DETAIL SPECIFICATION SHEET
CONNECTORS, RECEPTACLE, ELECTRICAL, SERIES 1, SOLDER TYPE, SOLDER MOUNTING, BAYONET COUPLING, CLASS H
Inactive for new design after 10 June 1993.
For new design, use MS3443.
This specification is approved for use by all Departments and Agencies of the Department of Defense.
The requirements for acquiring the product described herein shall consist of this specification sheet and MIL-DTL-26482.
STYLE P, PIN INSERT

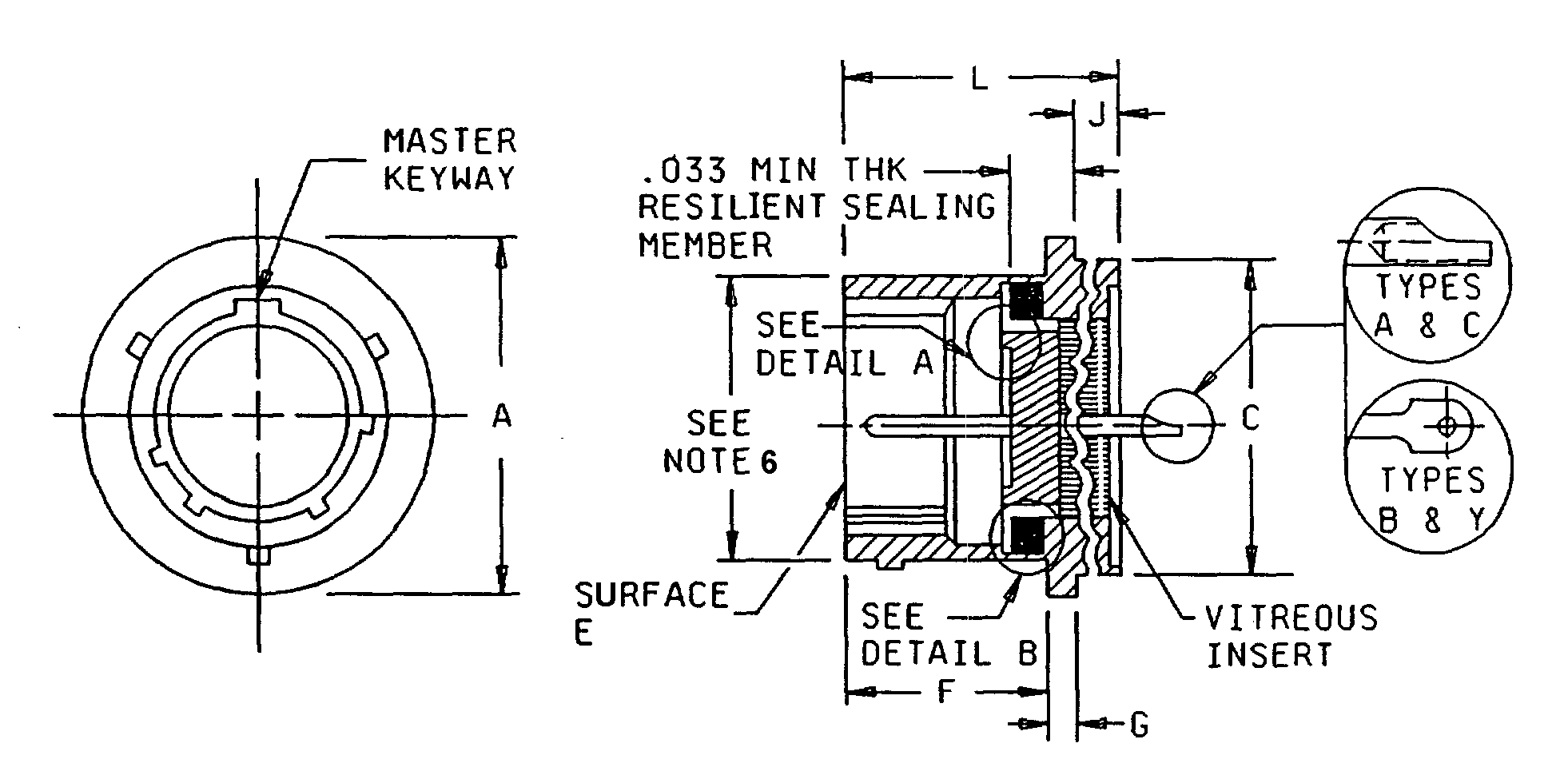

FIGURE 1. Dimensions and configurations for class H.
AMSC N/A FSC 5935
