INCH-POUND
MS3119E
1 March 2007
SUPERSEDING MS3119D
31 July 1978
DETAIL SPECIFICATION SHEET
CONNECTORS, RECEPTACLE, ELECTRICAL, THRU-BULKHEAD MOUNTING, FLANGE, BAYONET COUPLING, SERIES 1
Inactive for new design after 15 December 1998.
This specification is approved for use by all Departments and
Agencies of the Department of Defense.
The requirements for acquiring the product described herein shall consist of this specification sheet and MIL-DTL-26482.

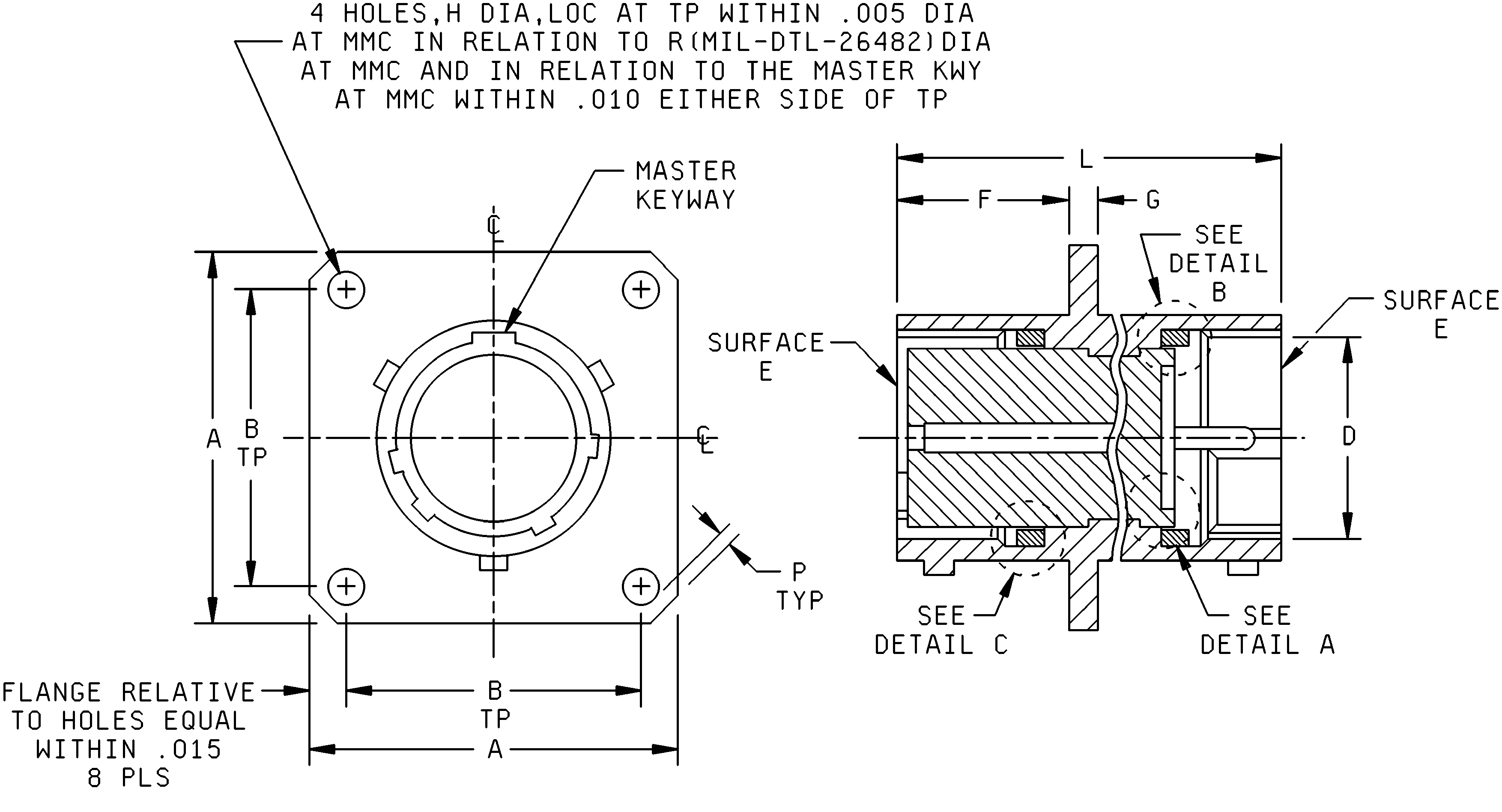

FIGURE 1. Receptacle, class E, dimensions and configurations.
AMSC N/A FSC 5935
