MS3121D

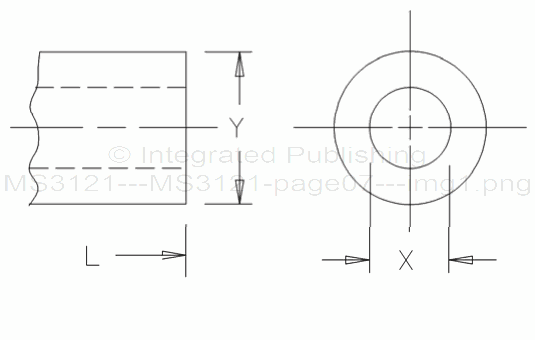

Dimensions for class E
|
Size |
L max over-all length |
x dia min ID |
y dia max OD |
8 |
1.552 (39.42) |
.259 (6.58) |
.608 (15.44) |
10 |
.359 (9.12) |
.734 (18.64) |
|
12 |
.469 (11.91) |
.858 (21.79) |
|
14 |
.589 (14.96) |
.984 (24.99) |
|
16 |
.717 (18.21) |
1.110 (28.19) |
|
18 |
.779 (19.79) |
1.234 (31.34) |
|
20 |
1.709 (43.41) |
.901 (22.89) |
1.360 (34.54) |
22 |
1.009 (25.63) |
1.484 (37.69) |
|
24 |
1.123 (28.52) |
1.610 (40.89) |
FIGURE 1. Dimensions for classes E, F, and P - Continued.
7
