INCH-POUND
MS3122F
1 March 2007
SUPERSEDING MS3122E
30 July 1979
DETAIL SPECIFICATION SHEET
CONNECTORS, RECEPTACLE, ELECTRICAL, CRIMP TYPE, BOX MOUNTING, FLANGE, NO. 4 HOLES, BAYONET COUPLING, SERIES 1
Inactive for new design after 15 December 1998.
This specification is approved for use by all Departments and
Agencies of the Department of Defense.
The requirements for acquiring the product described herein shall consist of this specification sheet and MIL-DTL-26482.
Style P (pin insert)

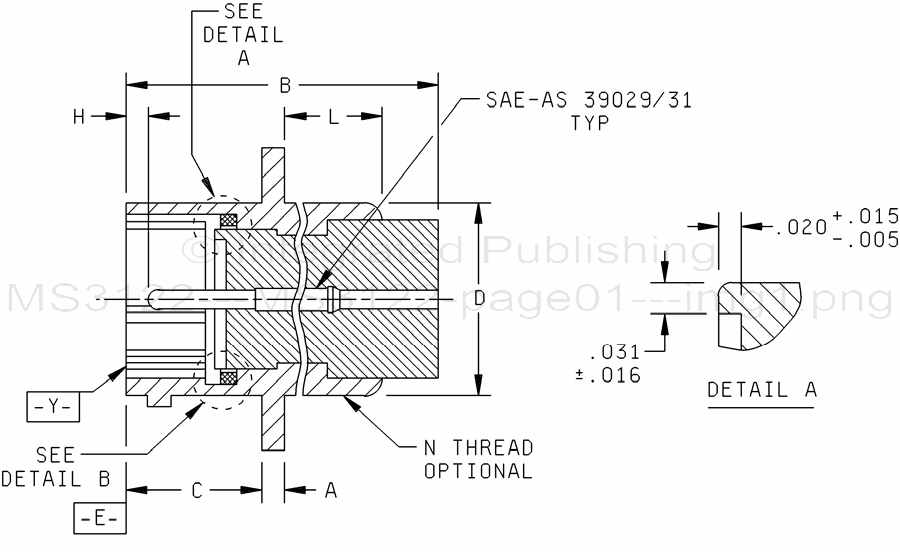

FIGURE 1. Receptacle, dimensions and configurations.
AMSC N/A FSC 5935
