INCH-POUND
MS3186G
16 March 2011 SUPERSEDING MS3186F
29 July 2008
DETAIL SPECIFICATION SHEET
CONNECTOR, MOUNTING TO CONNECTORS, MOUNTING NUTS, PLAIN HEXAGON
This specification is approved for use by all Departments and Agencies of the Department of Defense.
The requirements for acquiring the product described herein shall consist of this specification sheet and MIL-DTL-26482.
NOTES:
1. Dimensions are in inches.
2. Metric equivalents are given for information only.
3. Unless otherwise specified, tolerance shall be 0.XX ± .03 (0.76 mm) and
0.XXX ± .015 (0.38 mm).
4. Angular tolerances shall be X0 ± 20.
5. By default, the safety wire holes are drilled. The safety wire openings depicted in the alternate design are crimped. The crimped edge is specified by adding a "-C" to the PIN.
6. Safety wire assembly specification NASM33540 refers to nominal hole diameters for lockwire installation.

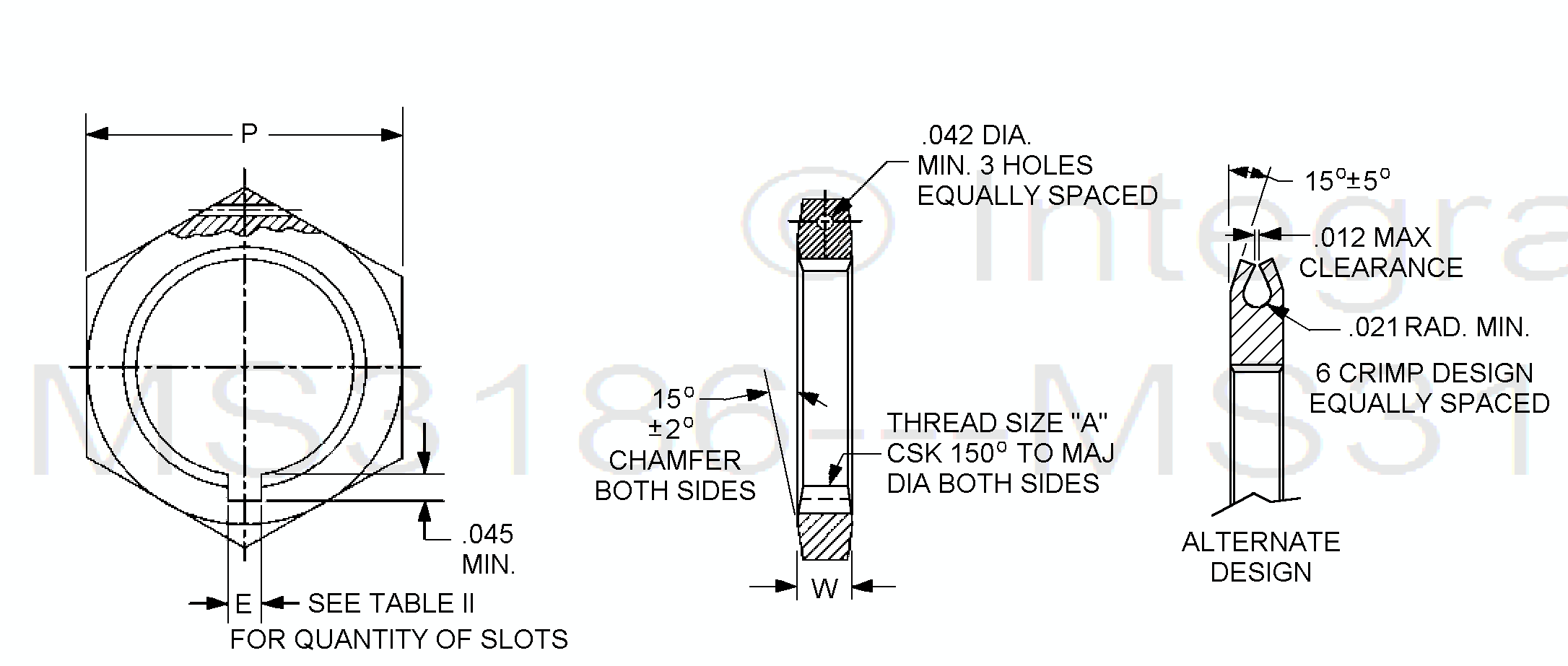

FIGURE 1. Dimensions and configurations.
