MS3187F

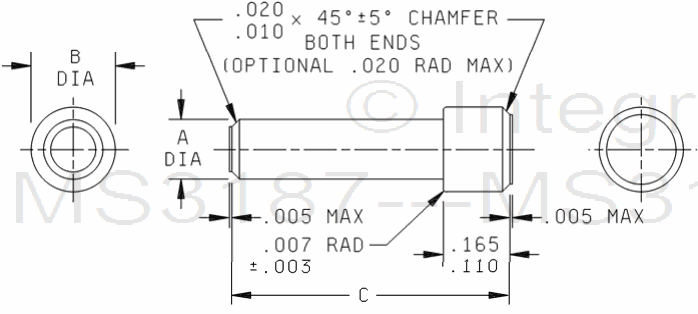

PIN |
Install in connector contact cavity size |
A dia |
B dia |
C |
Color code |
MS3187-20-2 |
20 |
.065 (1.65) .045 (1.14) |
.100 (2.54) .085 (2.16) |
.584 (14.83) .544 (13.82) |
Red |
MS3187-16-2 |
16 |
.093 (2.36) .073 (1.85) |
.138 (3.51) .128 (3.25) |
.584 (14.83) .544 (13.82) |
Blue |
MS3187-12-2 |
12 |
.131 (3.33) .111 (2.82) |
.176 (4.47) .166 (4.22) |
.584 (14.83) .544 (13.82) |
Yellow |
MS3187-8-2 |
8 |
.195 (4.95) .175 (4.45) |
.320 (8.13) .310 (7.87) |
.480 (12.19) .460 (11.68) |
Red |
MS3187-4-2 |
4 |
.320 (8.13) .300 (7.62) |
.420 (10.67) .410 (10.41) |
.480 (12.19) .460 (11.68) |
Blue |
MS3187-0-2 |
0 |
.450 (11.43) .430 (10.92) |
.610 (15.49) .600 (15.24) |
1.010 (25.65) .990 (25.15) |
Yellow |
Inches |
mm |
Inches |
mm |
|
.003 |
0.08 |
.020 |
0.51 |
|
.005 |
0.13 |
.110 |
2.79 |
|
.007 |
0.18 |
.165 |
4.19 |
|
|
NOTES: |
.010 |
0.25 |
1. Dimensions are in inches. Metric equivalents are given for information only.
2. Unless otherwise specified, tolerances are ± .005 inches.
3. Flash not to exceed .010 inches.
4. Break all sharp corners.
FIGURE 2. Grommet end seal for MIL-DTL-26482 series 2, and MIL-DTL-5015, MIL-C-81703 series 3 and MIL-DTL-83723 electrical connectors.
3
