INCH-POUND
MS3442C
1 March 2007
SUPERSEDING MS3442B
31 July 1978
DETAIL SPECIFICATION SHEET
CONNECTORS, RECEPTACLE, ELECTRICAL, WIDE FLANGE MOUNT, BAYONET COUPLING, SOLDER PIN CONTACT, CLASS H, SERIES 2
Inactive for new design after 15 December 1998.
This specification is approved for use by all Departments and
Agencies of the Department of Defense.
The requirements for acquiring the product described herein shall consist of this specification sheet and MIL-DTL-26482.
NOTE: For "XX", see note 5 and table I for contact cavities requiring reduced dimensions.

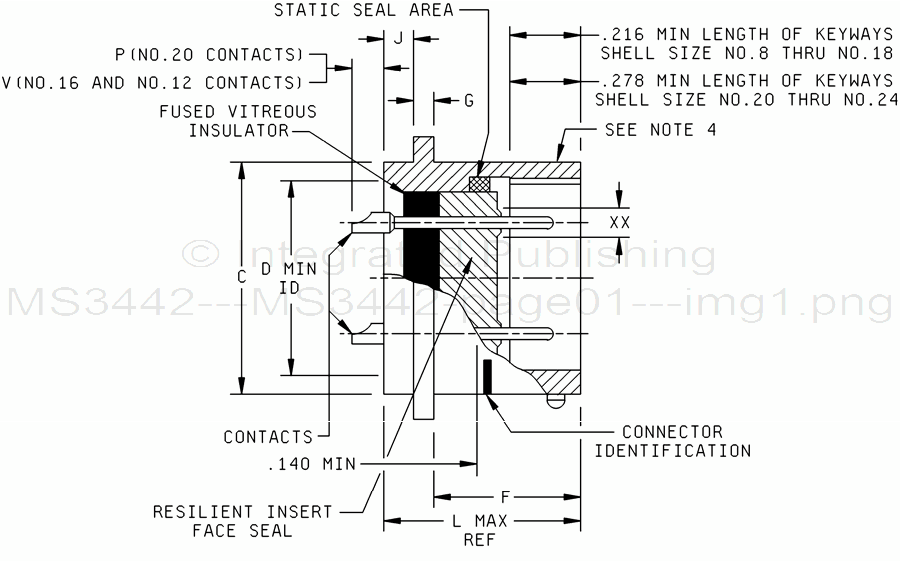

FIGURE 1. Receptacle, class H, dimensions and configurations.
