INCH-POUND
MS3472E
4 June 2009 SUPERSEDING MS3472D
12 July 1985
DETAIL SPECIFICATION SHEET
CONNECTORS, RECEPTACLE, ELECTRICAL, SERIES 2, CRIMP TYPE,
WIDE FLANGE MOUNTING, BAYONET COUPLING, CLASSES A, D, L, T, W AND Z
Reactivated after 4 June 2009, and may be used for new and existing designs and acquisitions.
This specification is approved for use by all Departments and Agencies of the Department of Defense.
The requirements for acquiring the product described herein shall consist of this specification sheet and MIL-DTL-26482.

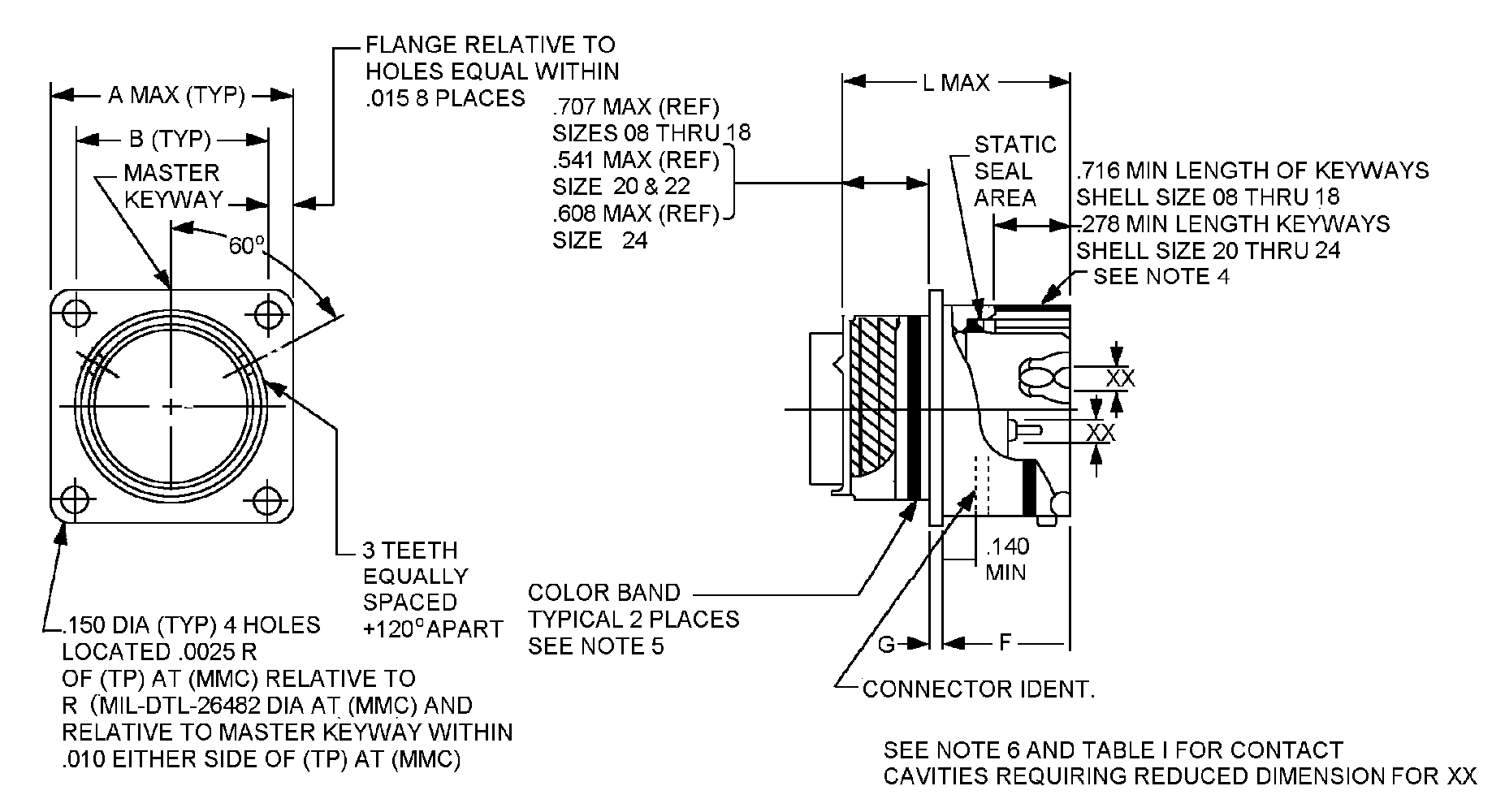

FIGURE 1. Receptacle, dimensions and configurations.
AMSC N/A FSC 5935
