INCH-POUND
MS35118E
01 August 2013
SUPERSEDING MS35118D
26 July 2006
DETAIL SPECIFICATION SHEET
CONNECTOR, RECEPTACLE, SERIES SM, UG-695/U
Inactive for new design after 15 June 1999
This specification is approved for use by all Departments and Agencies of the Department of Defense
The requirements for acquiring the product described herein shall consist of this specification sheet and MIL-DTL-27434.
Inches |
mm |
Inches |
mm |
.001 .003 .038 .132 .175 |
0.02 0.08 0.96 3.35 4.44 |
.266 .363 .375 .414 .875 |
6.76 9.22 9.52 10.51 22.22 |
NOTES:
1. Dimensions are in inches.
2. Metric equivalents are given for information only.
3. Unless otherwise specified tolerances shall be ± .003 Inch (0.08 mm).

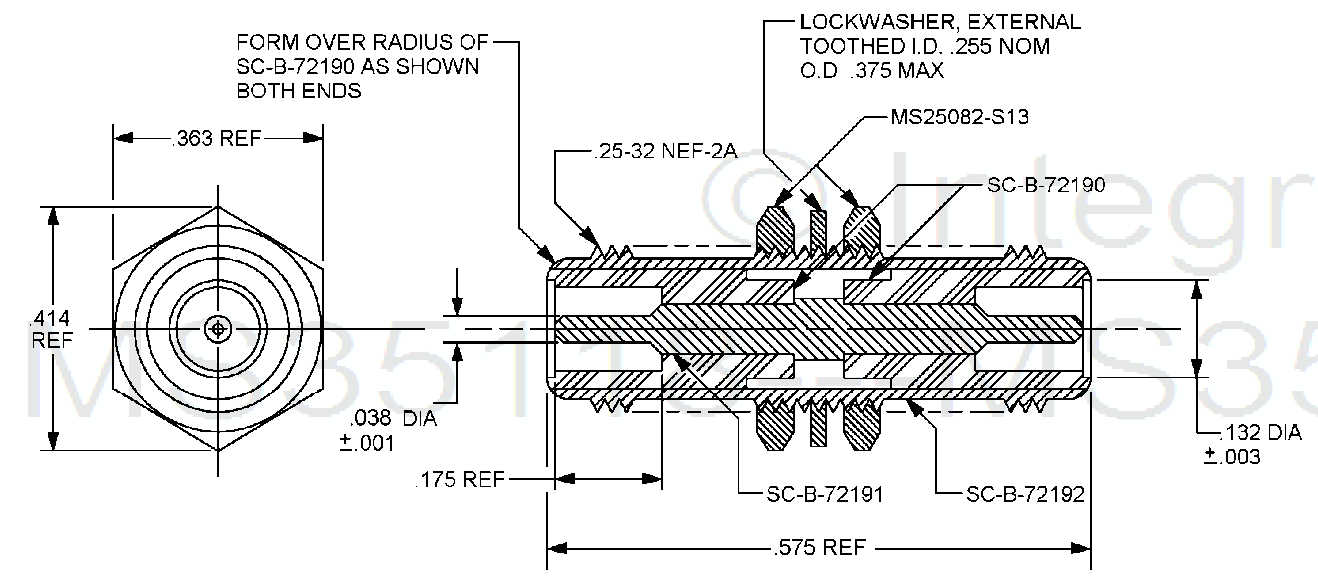

FIGURE 1. Connector, receptacle, series SM, UG-695/U.
