INCH-POUND
MS90261E
01 October 2012
SUPERSEDING MS90261D
7 November 2005
DETAIL SPECIFICATION SHEET
ADAPTER, CONNECTOR, COAXIAL, RADIO FREQUENCY, BETWEEN SERIES (SERIES C JACK TO SERIES HN PLUG) TYPE UG-703 A/U
Inactive for new design after 15 June 1999.
This specification is approved for use by all Departments and Agencies of the Department of Defense
The requirements for acquiring the product described herein shall consist of this specification sheet and MIL-DTL-27434.
Inches |
mm |
.781 |
19.84 |
1.500 |
38.10 |
NOTES:
1. Dimensions are in inches.
2. Metric equivalents are given for information only.
3. Series HN socket contact interface and series C pin contact interface to be in accordance with
MIL-STD-348.

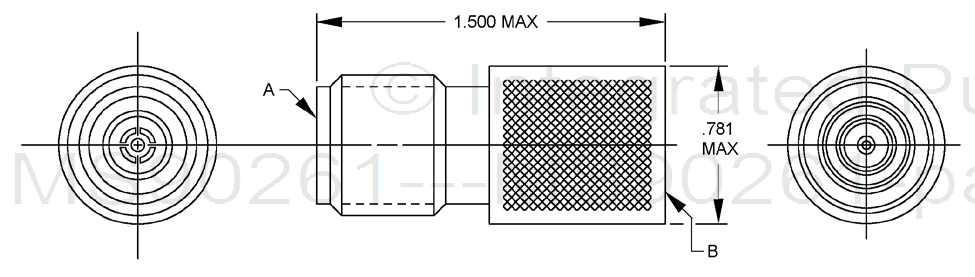

FIGURE 1. Type UG-703A/U connector.
