DETAIL SPECIFICATION SHEET
INCH-POUND
MS90567C
26 October 2005
SUPERSEDING MS90567B
28 August 1974
INSERT ARRANGEMENTS, ELECTRICAL CONNECTOR, SIZE 48, CLASS L, 150 AMPS
This specification is approved for use by all Departments and Agencies of the Department of Defense
The requirements for acquiring the product described herein shall consist of this specification sheet and MIL-DTL-22992.
Quantity |
Contact |
Size |
Socket SAE-AS39029/49- |
Pin SAE-AS39029/48- |
3 |
A, B, C |
2/0 |
334 |
325 |
1 |
N |
2/0N |
334 (see note 7) |
326 |
4 |
G1, G2, G3, G4 |
6G |
330 (see note 7) |
319 |

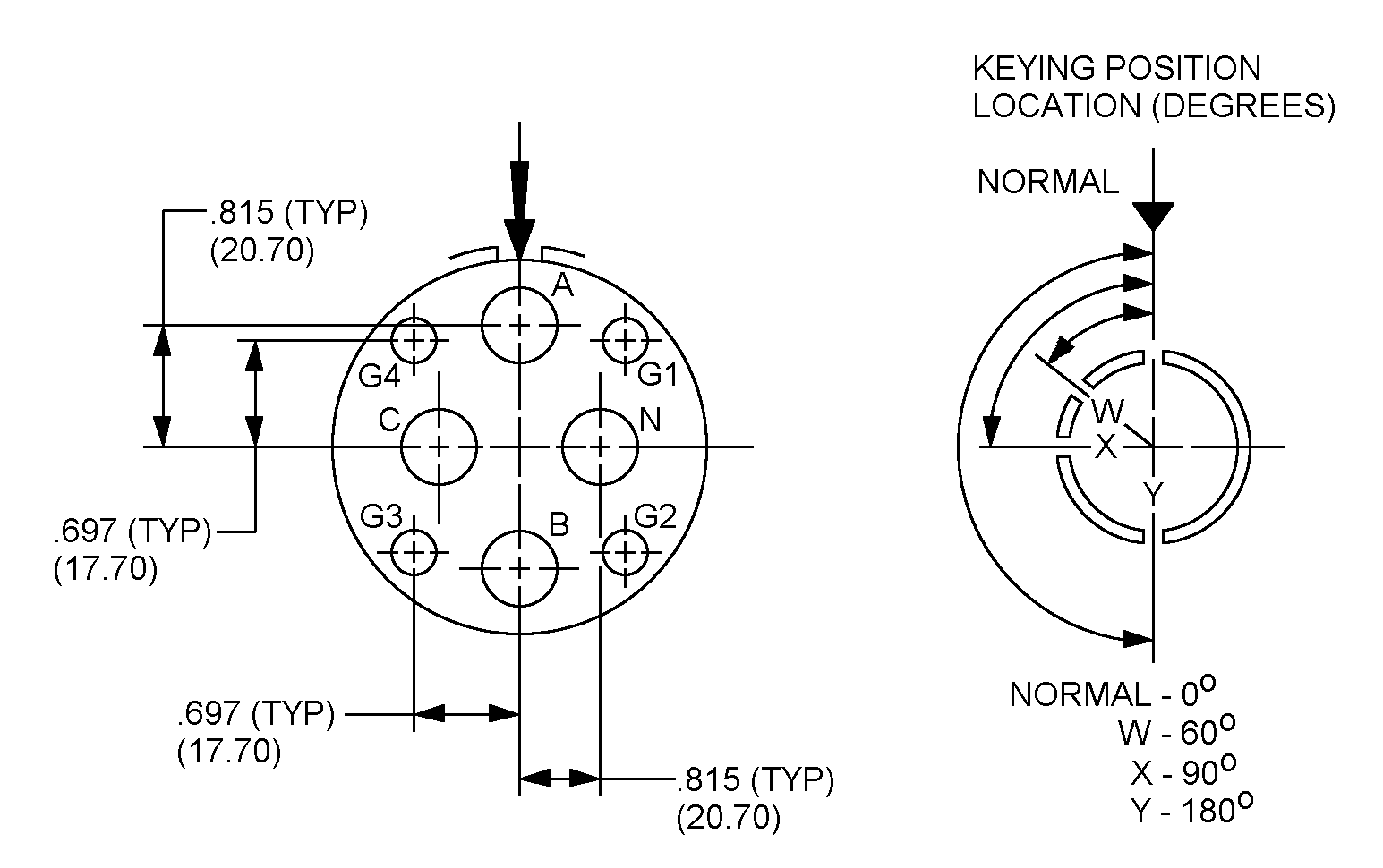

FIGURE 1. AC three phase, four wire grounding, -13 insert arrangements, service D. AMSC N/A FSC 5935
