INCH-POUND
FEDERAL SPECIFICATION SHEET
W-C-596/1288
20 January 2012
SUPERSEDING W-C-596/128A
8 August 2001
CONNECTORS, RECEPTACLE, ELECTRICAL, SPECIAL PURPOSE, SINGLE, GROUNDING,
3 POLE, 4 WIRE, 30 AMPERES, 250 VOLTS, 50/60 HERTZ, 3-PHASE
Inactive for new design after 20 January 2012.
This specification is approved for use by all
Departments and Agencies of the Department of Defense.
The requirements for acquiring the product described herein shall consist of this specification sheet and W-C-596.
NOTES:
1. Dimensions are in inches.
2. Metric equivalents are given for information only.
3. Undimensioned pictorials are for reference purposes only.
4. For mounting dimensions, see W-C-596 (single receptacle with break-off ears).

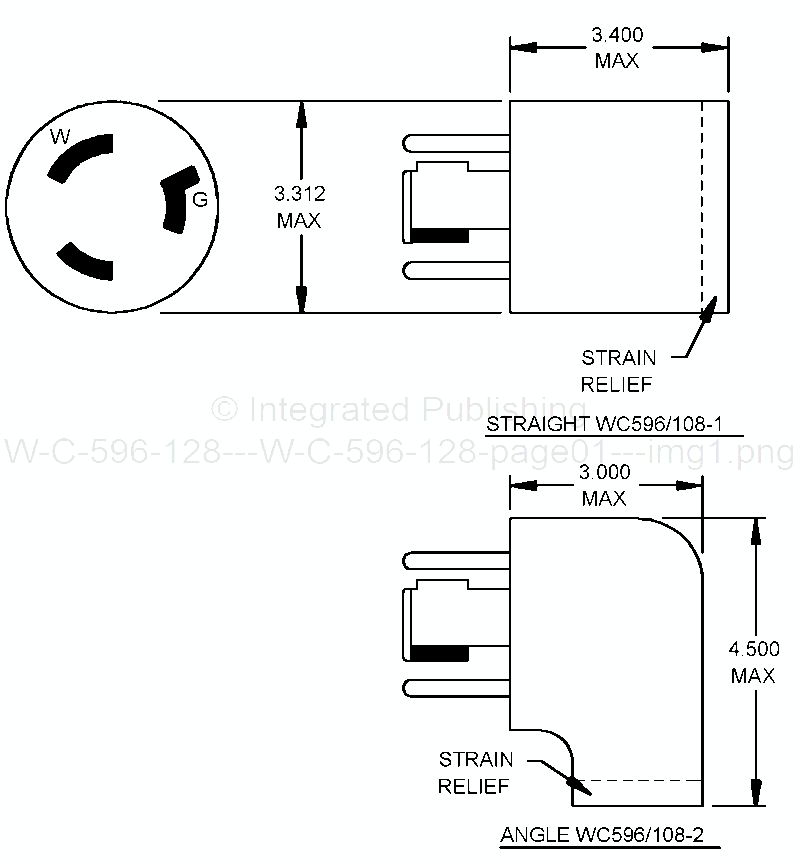

FIGURE 1. Configuration and dimensions.
AMSC N/A FSC 5935
