INCH-POUND
W-C-596/1498
10 October 2012
SUPERSEDING W-C-596/149A
3 May 1988
FEDERAL SPECIFICATION SHEET
CONNECTOR, PLUG, ELECTRICAL, SPECIFIC PURPOSE, LOCKING, GROUNDING,
2 POLE, 3 WIRE, 30 AMPERES, 28 VOLTS, DIRECT CURRENT
Inactive for new design after 10 October 2012.
The General Services Administration has authorized the use of this federal specification, by all federal agencies.
The complete requirements for procuring connector described herein shall consist of this document and the latest issue in effect of W-C-596.
NOTES:
1. Dimensions are in inches.
2. Metric equivalents are given for information only.
3. Unless otherwise specified, tolerance is ±.005 (0.13 mm) on all decimals and ±5° on angles.

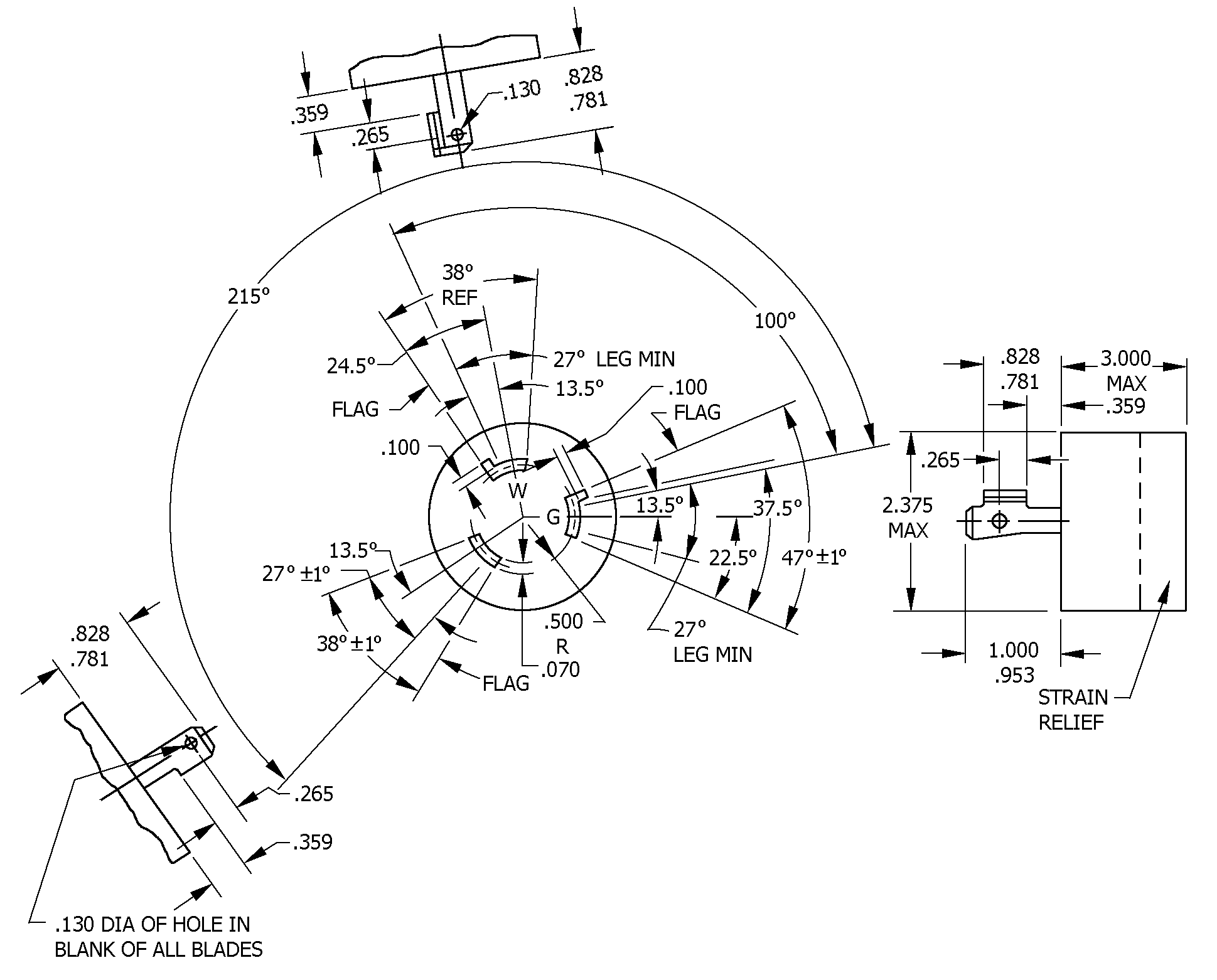

FIGURE 1. Configuration and dimensions.
AMSC N/A FSC 5935
