INCH-POUND
FEDERAL SPECIFICATION SHEET
W-C-596/1798
19 October 2001
SUPERSEDING W-C-596/179A
30 April 1992
CONNECTOR, RECEPTACLE, ELECTRICAL, MALE INLET, GENERAL PURPOSE, GROUNDING, 2 POLE, 3 WIRE, 30 AMPERES, 277 VOLTS, 50/60 HERTZ
INACTIVE FOR NEW DESIGN, USE W-C-596/106
The General Services Administration has authorized the use of this federal specification sheet by all federal agencies.
The complete requirements for procuring the connectors described herein shall consist of this document and the latest issue of W-C-596/GEN.
NOTES:
1. Dimensions are in inches.
2. Metric equivalents are given for general information only.
3. Relation of mounting holes to contact location may be other than as shown.
4. See optional mounting hole configurations of W-C-596/GEN.
5. Undimensioned pictorials are for reference purposes only.

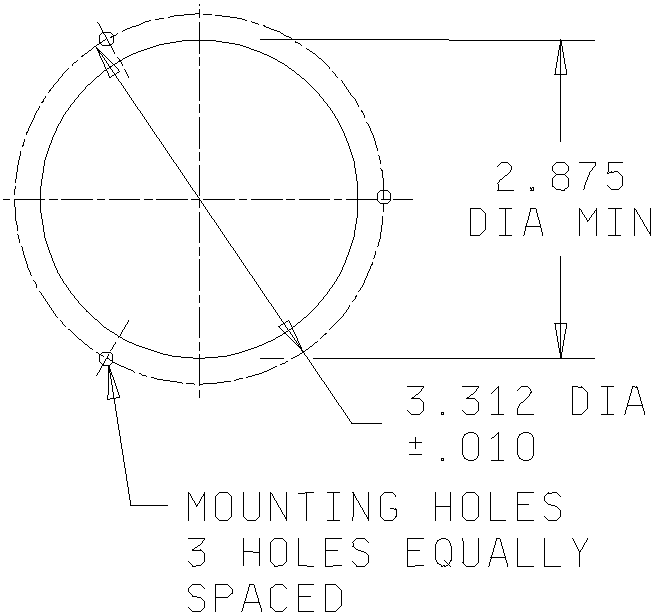

FIGURE 1. Configuration and dimensions.
AMSC N/A 1 of 2 FSC 5935
DISTRI8UTION STATEMENT A. Approved for public release; distribution is unlimited.
