INCH-POUND W-C-596/1848
10 August 2006
SUPERSEDING W-C-596/184A
15 February 1989
FEDERAL SPECIFICATION SHEET
CONNECTORS, RECEPTACLE, ELECTRICAL, GENERAL PURPOSE, SINGLE, GROUNDING, 3 POLE, 4 WIRE, 50 AMPERES, 125/250 VOLTS, 50/60 HERTZ
Inactive for new design after 31 August 2000.
The General Services Administration has authorized the use of this federal specification sheet by all federal agencies.
The complete requirements for procuring the connectors described herein shall consist of this document and the latest issue in effect of W-C-596.
Inches mm
2.000 50.80
2.875 73.02
NOTES:
1. Dimensions are in inches.
2. Metric equivalents are given for information only.

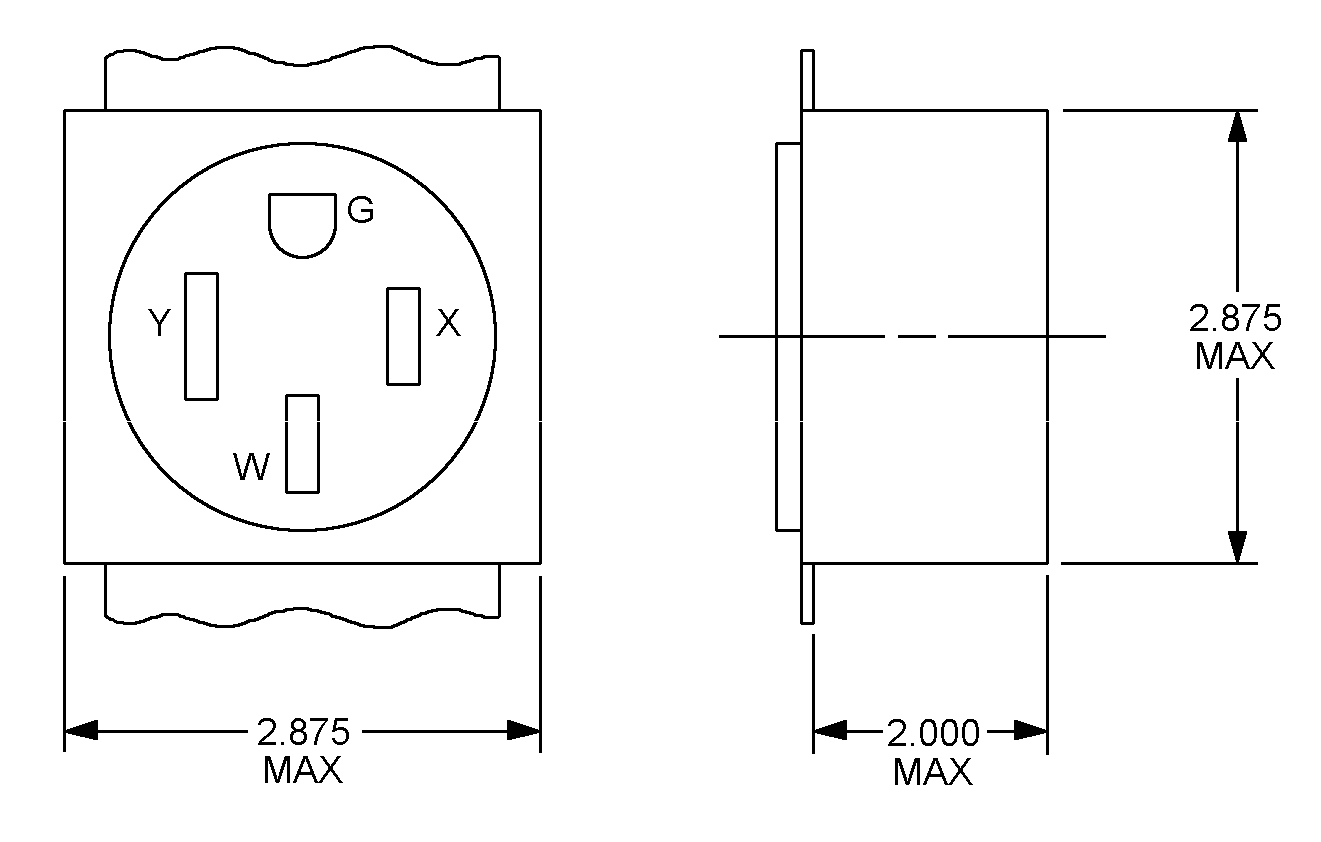

FIGURE 1. Configurations and dimensions.
AMSC N/A FSC 5935
