INCH-POUND
W-C-596/2008
12 October 2012
SUPERSEDING W-C-596/200A
07 December 2001
FEDERAL SPECIFICATION SHEET
CONNECTOR, RECEPTACLE, ELECTRICAL, GENERAL PURPOSE, SINGLE GROUNDING, 3 POLE, 4 WIRE, 50 AMPERES, 250 VOLTS, 50/60 HERTZ, 3 PHASE
Inactive for new design after 12 October 2012.
The General Services Administration has authorized the use of this federal specification, by all federal agencies.
The complete requirements for procuring connector described herein shall consist of this document and the latest issue in effect of W-C-596.

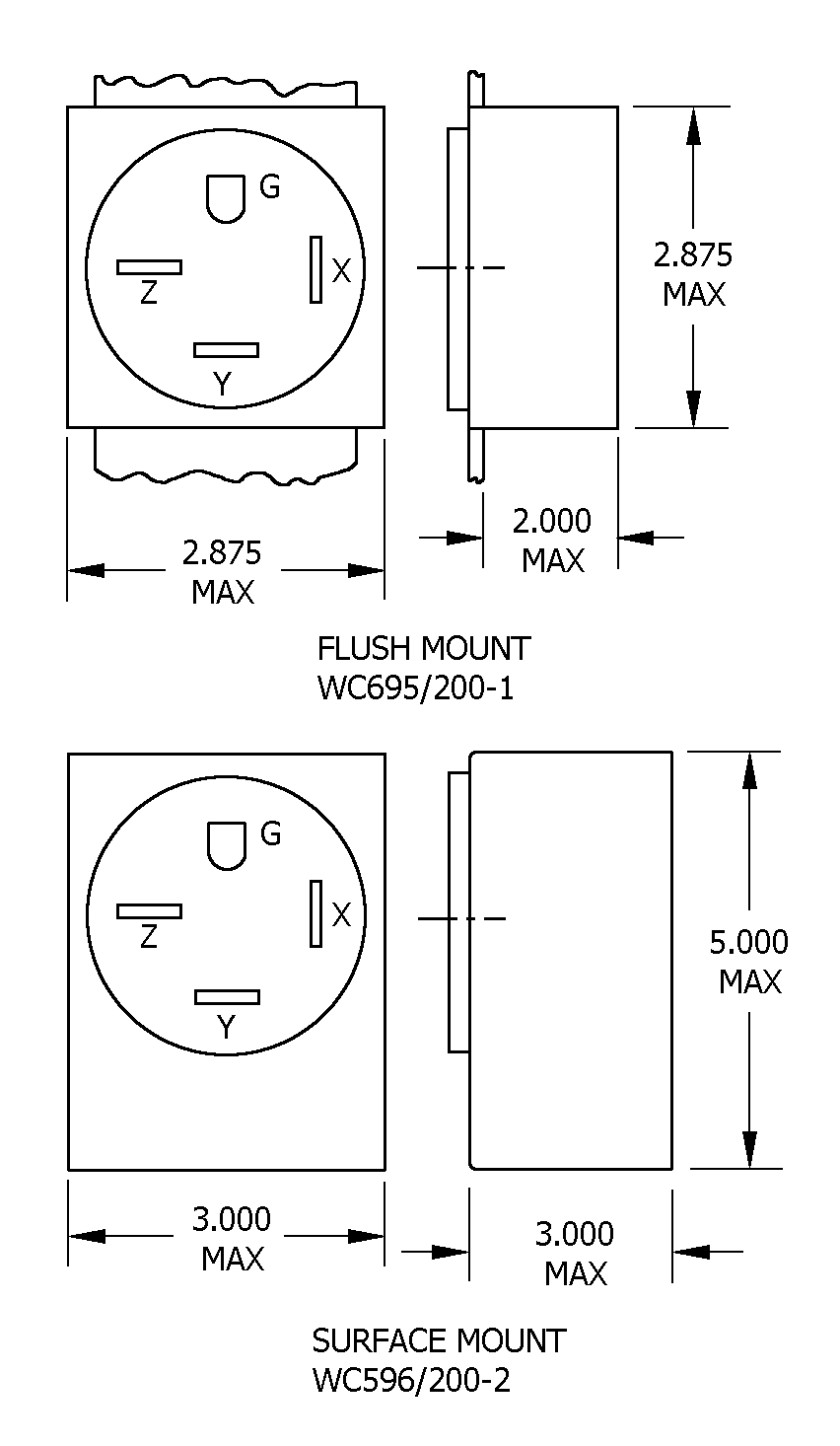

FIGURE 1. Configuration and dimensions.
AMSC N/A FSC 5935
