INCH-POUND
W-C-596/36D
20 July 2001
SUPERSEDING W-C-596/36C
24 June 1983
FEDERAL SPECIFICATION SHEET
CONNECTOR, RECEPTACLE, ELECTRICAL, GENERAL PURPOSE, SINGLE,
3 POLE, 3 WIRE, 50 AMPERES, 125/250 VOLTS, 50/60 HERTZ
The General Services Administration has authorized the use of this federal specification sheet by all federal agencies.
The complete requirements for procuring the connectors described herein shall consist of this document and the latest issue of W-C-596/GEN.
INACTIVE FOR NEW DESIGN USE W-C-596/184
NOTES:
1. For mounting dimensions, see W-C-596/GEN (center boss receptacles).
2. Dimensions are in inches.
3. Metric equivalents are given for general information only.
4. Undimensioned pictorials are for reference purposes only.

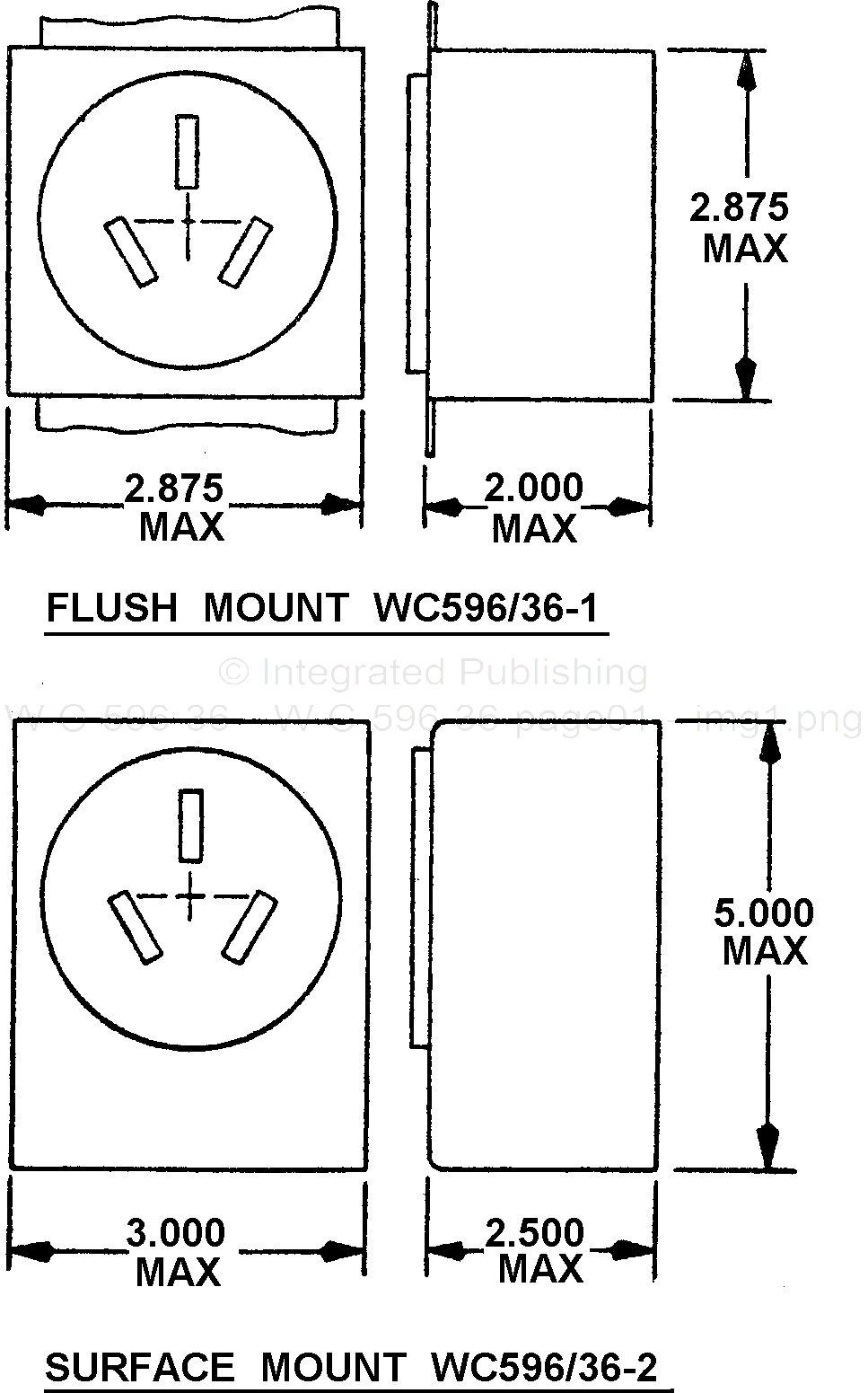

FIGURE 1. Configuration and dimensions.
AMSC N/A 1 of 3 FSC 5935
DISTRIBUTION STATEMENT A. Approved for public release; distribution is unlimited.
