MIL-DTL-12883/1F

Inches

.003

0.08

.005

0.13

.007

0.18

.035

0.89

.055

1.40

.075

1.91

.093

2.36

.095

2.41

.135

3.43

.300

7.62

.317

7.66

.340

8.64

.406

10.31

.480

12.19

.560

14.22

.687

17.45

NOTES:

1. Dimensions are in inches.

2. Metric equivalents are given for general information only.

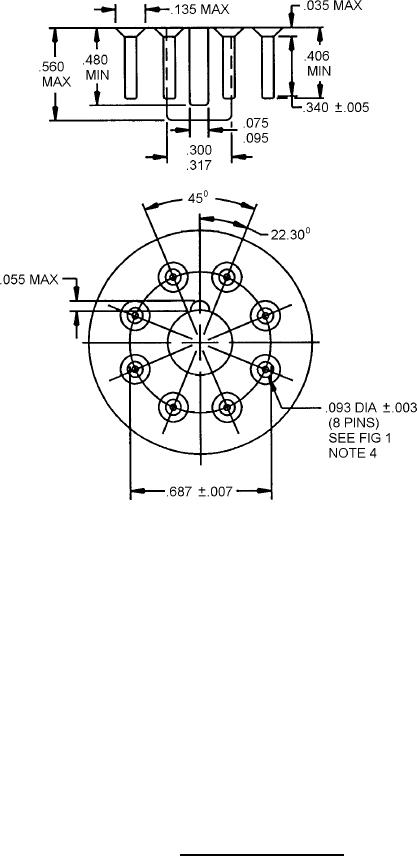

FIGURE 2. Mating-base dimensions.
