INCH-POUND
MIL-DTL-12883/2E
18 February 2003
SUPERSEDING
MIL-PRF-12883/2D
28 June 1996
DETAIL SPECIFICATION SHEET
SOCKETS AND ACCESSORIES FOR PLUG-IN ELECTRONIC COMPONENTS
(ELECTRON TUBE, TOP MOUNTING, SADDLE TYPE WITH SHIELD BASE, 7 CONTACT, RADIAL)
Inactive for new design after 3 February 1978. For new design use MIL-DTL-12883/10
This specification is approved for use by all Departments and Agencies of the Department of Defense.
The requirements for acquiring the product described herein
shall consist of this specification and MIL-DTL-12883.

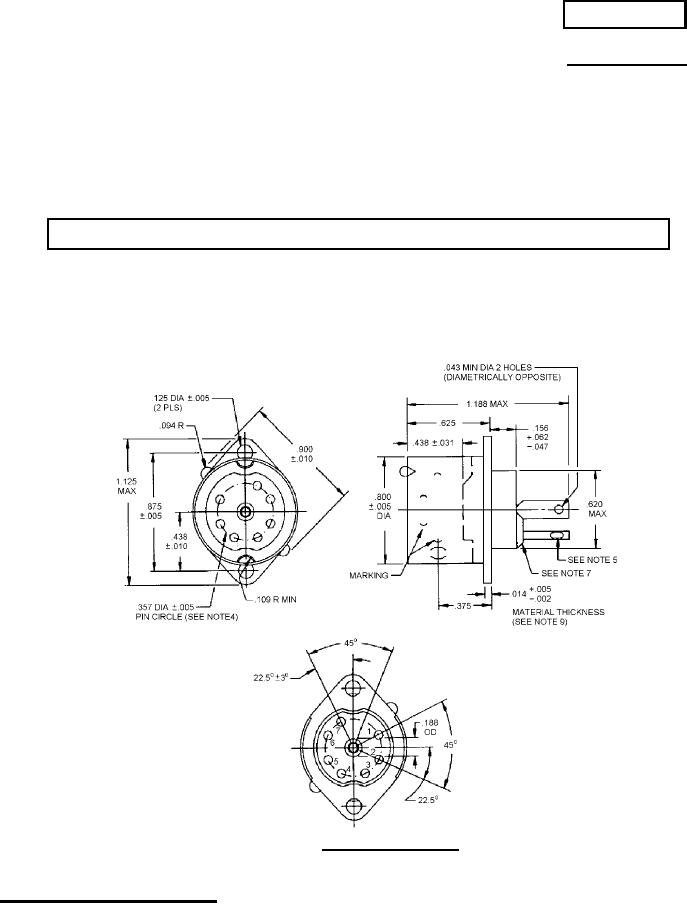

FIGURE 1. Socket configuration.
AMSC N/A
1 of 8
FSC 5935
DISTRIBUTION STATEMENT A. Approved for public release; distribution is unlimited
