MIL-DTL-12883-40 Sockets, Plug-In Electronic Components For Relays, 4-Pole, 10 Amperes \(Mil-R-6106, Mil-R-83536, Mil-R-83726, And Ms27709\)

Pages 1 - 2 - 3 - 4 - 5 - 6 - 7 - 8 - 9 - 10 - 11

MIL-DTL-12883/40F

Inches

5.59

.220

2.36

.093

6.22

.245

2.84

.112

6.86

.270

3.18

.125

7.37

.290

4.83

.190

8.89

.350

NOTES:

1. Dimensions are in inches.

2. Metric equivalents are for general information only.

3. Unless otherwise specified, tolerances are +.005 (0.13 mm) for three place decimals and +.01 inch

(0.25 mm) for two place decimals.

4. Length from top of socket flange to base of .112-40 UNC-2A thread for:

�07 through �12 length shall be .318 +.010 inch (8.08 +.25 mm).

�19 through �24 length shall be .290 +.010 inch (7.37 +0.25 mm).

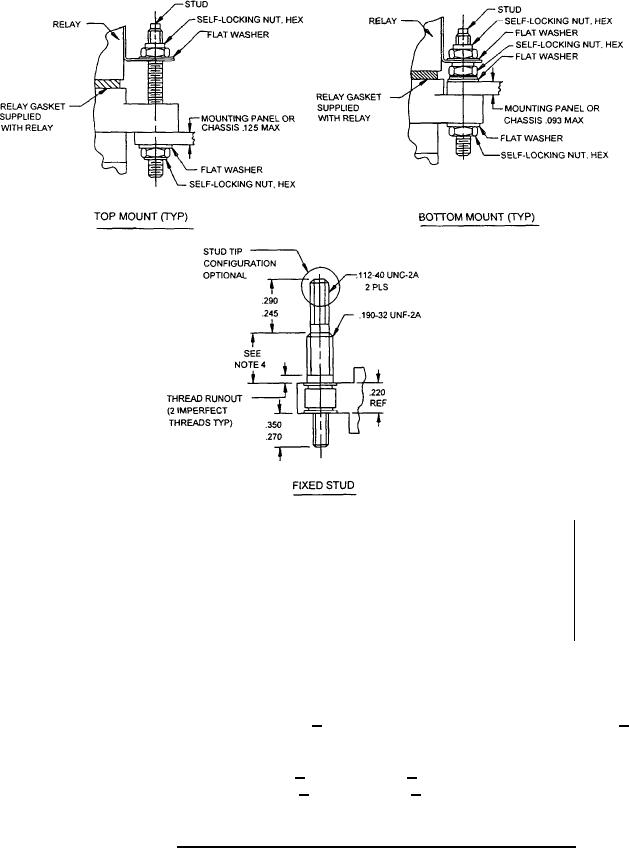

FIGURE 3. Fixed stud mounting (-07 through �12 and �19 through �24).
