MIL-DTL-12883/42F
Inches
mm
Inches
mm
Inches
mm
Inches
mm
.003
.112
2.84
0.07
.295
7.49
26.97
1.062
.004
0.10
.120
3.05
.350
8.89
30.15
1.187
.005
0.13
.138
3.51
.430
10.92
1.59
40.39
.010
0.25
.156
3.96
.665
16.90
1.655
42.04
.015
0.38
.161
4.09
.688
17.47
.215
.028
0.71
5.41
.730
18.54
NOTES:
1. Dimensions are in inches.
2. Metric equivalents are given for information only.
3. Unless otherwise specified, tolerance is +.005 inch (0.13 mm).
4. Direction of threaded boss optional may face inward or outward.
5. Lug shall be bent between 45 and 90 degrees and must remain in the confines of the .730 inch
(18.54 mm) and the 1.59 inch (40.39 mm) max dimensions. Location of lug optional.
6. Lug and contact tables shall have either 1 wire hole of .040 inch (1.02 mm) minimum width and
.120 inch (3.18 mm) minimum length or 2 holes of .040 inch (1.02 mm) minimum width and .075
inch (.1.91 mm) minimum length. The hole or holes shall lie on the longitudinal centerline of the
contact tab within ±.008 inch (0.20 mm).
7. For dash numbers 01 through 08 the mounting saddle dimension hole is .335 inches (8.51 mm).

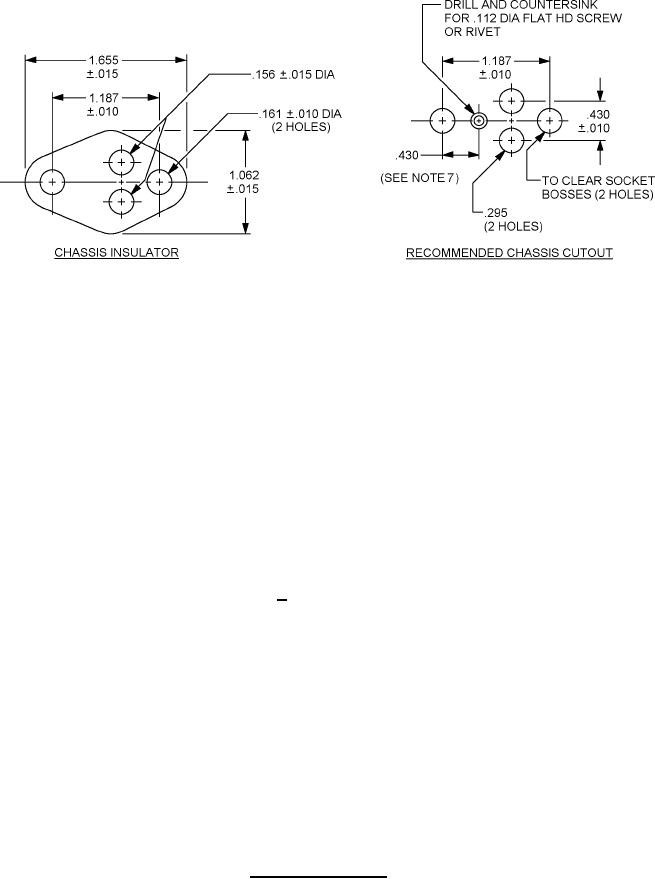

FIGURE 1. Socket configuration - Continued.
