MIL-DTL-12883/42F

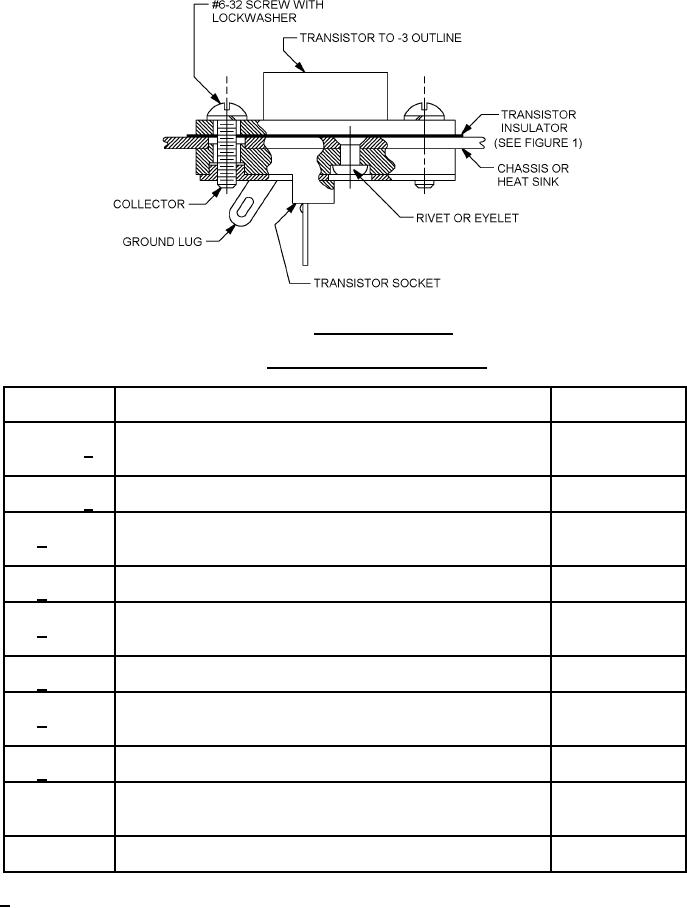

FIGURE 2. Suggested mounting.
TABLE I. Dash number and characteristics.
Dash number
Mounting thread
Contact engagement area and termination finish
sizes
Gold in accordance with ASTM B488, type II, code C, class
0.76 (30 microinches) over nickel in accordance with SAE-
-01 (1 lug) 1/
.138-32 UNC-2B
AMS-QQ-N-290, 50 to 100 microinches (1.27 to 2.54 µm) thick.
Tin/lead in accordance with SAE-AMS-P-81728, 50 to 95
percent tin, 100 to 300 microinches (2.54 to 7.62 µm) thick.
.138-32 UNC-2B
-02 (1 lug) 1/
Gold in accordance with ASTM B488, type II, code C, class
0.76 (30 microinches) over nickel in accordance with SAE-
-03 1/
138-32 UNC-2B
AMS-QQ-N-290, 50 to 100 microinches (1.27 to 2.54 µm) thick.
Tin/lead in accordance with SAE-AMS-P-81728, 50 to 95
percent tin, 100 to 300 microinches (2.54 to 7.62 µm) thick.
138-32 UNC-2B
-04 1/
Gold in accordance with ASTM B488, type II, code C, class
0.76 (30 microinches) over nickel in accordance with SAE-
-05 1/
M3X0.5
AMS-QQ-N-290, 50 to 100 microinches (1.27 to 2.54 µm) thick.
Tin/lead in accordance with SAE-AMS-P-81728, 50 to 95
percent tin, 100 to 300 microinches (2.54 to 7.62 µm) thick.
M3X0.5
-06 1/
Gold in accordance with ASTM B488, type II, code C, class
0.76 (30 microinches) over nickel in accordance with SAE-
-07 1/
M3X0.5
AMS-QQ-N-290, 50 to 100 microinches (1.27 to 2.54 µm) thick.
Tin/lead in accordance with SAE-AMS-P-81728, 50 to 95
percent tin, 100 to 300 microinches (2.54 to 7.62 µm) thick.
M3X0.5
-08 1/
Gold in accordance with ASTM B488, type II, code C, class
0.76 (30 microinches) over nickel in accordance with SAE-
-09 (1 lug)
.138-32 UNC-2B
AMS-QQ-N-290, 50 to 100 microinches (1.27 to 2.54 µm) thick.
Tin/lead in accordance with SAE-AMS-P-81728, 50 to 95
percent tin, 100 to 300 microinches (2.54 to 7.62 µm) thick.
.138-32 UNC-2B
-10 (1 lug)
1/ These dash numbers are not available and are for reference only.
3
