INCH-POUND
MIL-DTL-21097/17E
18 August 2005
SUPERSEDING
MIL-C-21097/17D
10 October 1972
DETAIL SPECIIFCATION SHEET
CONNECTORS, ELECTRICAL, PRINTED WIRING BOARD
CONTACT, SOLDER, REMOVABLE, TYPE CR
This specification is approved for use by all Departments and Agencies of the Department of Defense.
The requirements for acquiring the product described herein shall consist of this specification sheet and
MIL-DTL-21097.
Inches
mm
.010
.25
.015
.38
.040
1.02
.085
2.16
.095
2.41
.120
3.05
.144
3.66
.310
7.87
.620
15.75
NOTES:
1. Dimensions are in inches.
2. Unless otherwise specified, tolerance is ±.005 (.13 mm) for three place decimals.
3. Metric equivalents are given for information only.

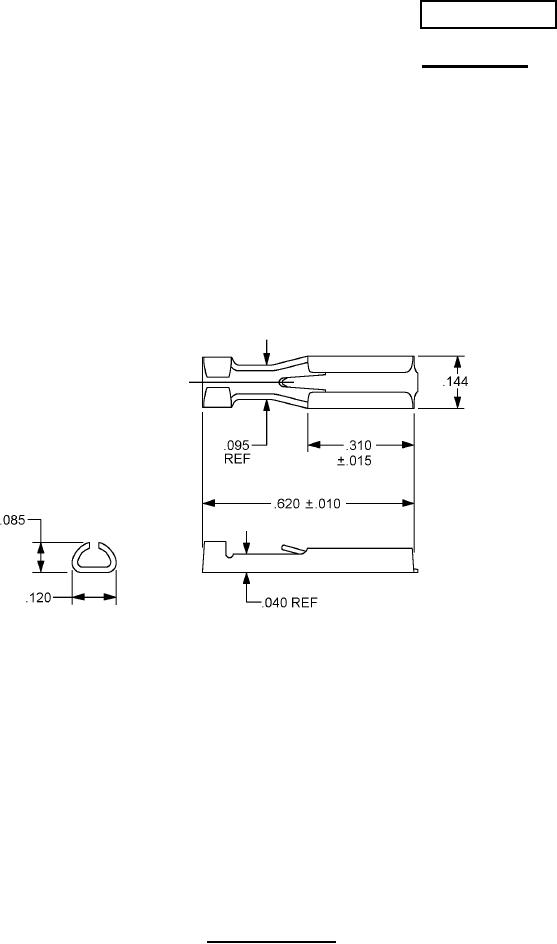

FIGURE 1. Solder type contact.
AMSC N/A
FSC 5935
