INCH-POUND
MIL-DTL-24308/26L
7 January 2009
SUPERSEDING
MIL-DTL-24308/26K
25 June 2007
DETAIL SPECIFICATION SHEET
CONNECTORS, ELECTRIC, RECTANGULAR,
MINIATURE, POLARIZED SHELL, RACK
AND PANEL, SCREW-LOCK ASSEMBLY, FEMALE
This specification is approved for use by all Departments and Agencies of the Department of Defense.
The requirements for acquiring the product described herein shall consist of this specification sheet and
MIL-DTL-24308.
.188
±.015
ACCROSS FLATS
.112-40UNC-2A
.155 MAX
.120 MIN
.188
±.015
.030 MIN UNTHREADED
.030
.219 X .032
MIN
Inches
mm
.015
0.38
LOCKWASHER
.112 DIA
.030
0.76
.107
A
.032
0.81
NUT
.107
2.72
.112
2.84
.120
3.05
.155
3.94
.188
4.78
.216
5.49
.112-40 UNC-2A
.216 MIN LONG
.219
5.56
NOTES:
1. Dimensions are in inches.
2. Metric equivalents are given for information only.
3. When a connector using the alternate method of securing the shell (tab type) is front mounted, one
flat washer shall be used as a spacer between the mounting surface and the connector.

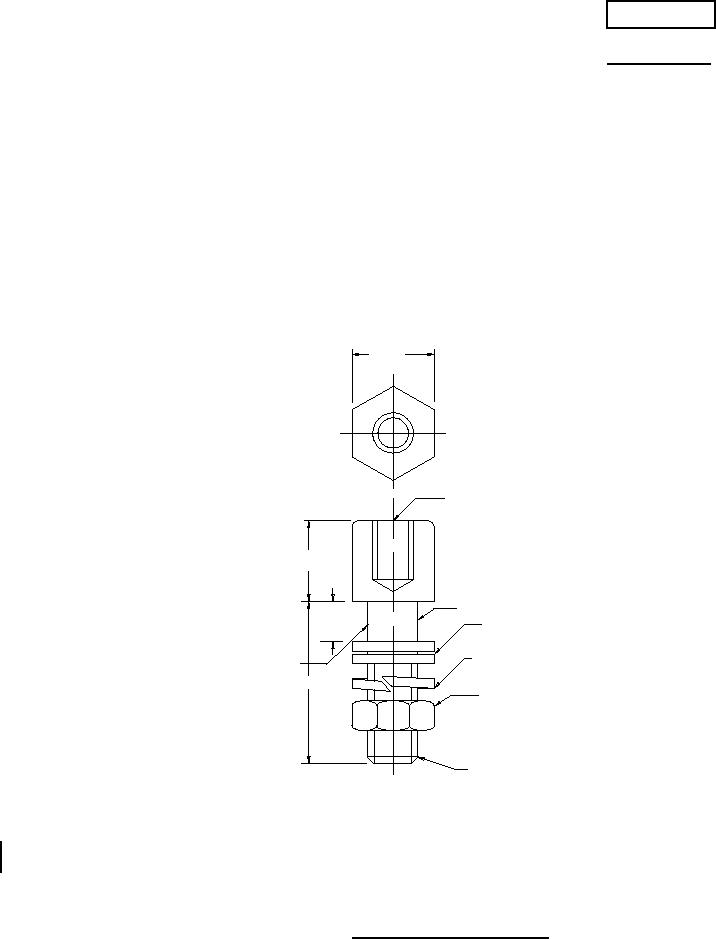

FIGURE 1. Dimensions and configuration.
AMSC N/A
FSC 5935
