MIL-DTL-24308/29 Connectors, Electric, Rectangular, Miniature, Combination Insert Arrangement, Plug, Pin Contacts, Shell Size 1, Size 20 Signal Contacts and Size 8 Power and Shielded, Class G, M, N and D

1 - 2 - 3 - 4 - 5 - 6 - 7 - 8 - 9 - 10 - 11 - 12 - 13


MIL-DTL-24308/29
M24308/29-113, -114
M24308/29-123, -124
5W1 SHIELDED CONNECTORS
NOTES:
1. Dimensions are in inches.
2. Metric equivalents are given for information only.
3. Unless otherwise specified, tolerance for three place decimals is ±.005 inch (0.13 mm).

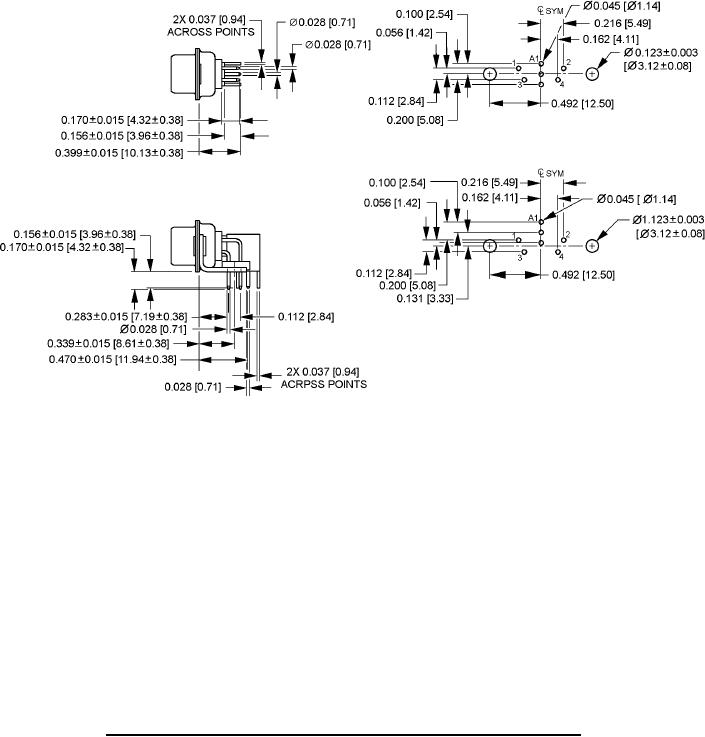

FIGURE 4. Termination dimensions and layout arrangement for shielded connector ­ Continued.
