MIL-DTL-24308/29
1 April 2015
DETAIL SPECIFICATION SHEET
CONNECTORS, ELECTRIC, RECTANGULAR, MINIATURE,
COMBINATION INSERT ARRANGEMENT, PLUG, PIN CONTACTS, SHELL SIZE 1,
SIZE 20 SIGNAL CONTACTS AND SIZE 8 POWER AND SHIELDED,
CLASS G, M, N AND D
This specification is approved for use by all Departments and Agencies of the Department of Defense.
The requirements for acquiring the product described herein shall consist of this specification sheet and
MIL-DTL-24308.
2W2K
5W1
NOTES:
1. Dimensions are in inches.
2. Metric equivalents are given for information only.
3. Unless otherwise specified, tolerance for three place decimals is ±.005 inch (0.13 mm).
4. All dimensions are true position (TP).
5. Contact holes in insert shall be located on TP within a .005 inch (0.13 mm) diameter circle.
6. Reference documents shall be of the issue in effect on date of invitations for bid.
7. 2WK2 have 1 pin and 1 socket contacts. Socket contact shall be loaded in A1 position.

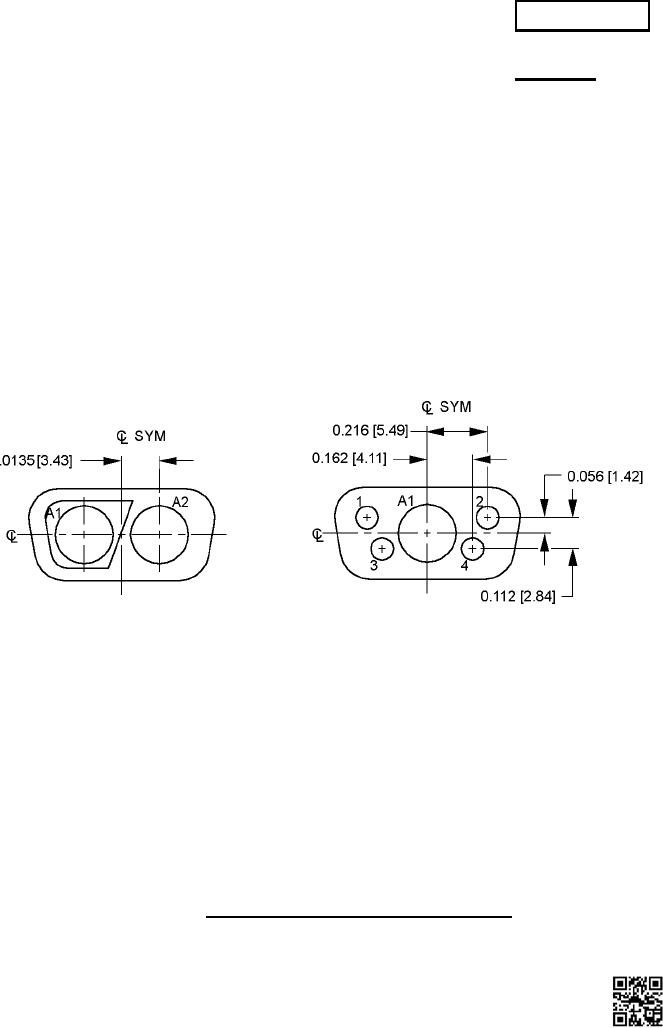

FIGURE 1. Insert arrangements, shell size 1, pin contacts.
