INCH-POUND
MIL-DTL-24308/3J
2 March 2009
SUPERSEDING
MIL-DTL-24308/3H
25 June 2007
DETAIL SPECIFICATION SHEET
CONNECTORS, ELECTRIC, RECTANGULAR, MINIATURE,
POLARIZED SHELL, RACK AND PANEL, PIN CONTACTS,
GENERAL PURPOSE, CLASS D AND G, SOLDER TYPE
This specification is approved for use by all Departments and Agencies of the Department of Defense.
The requirements for acquiring the product described herein shall consist of this specification sheet and
MIL-DTL-24308.

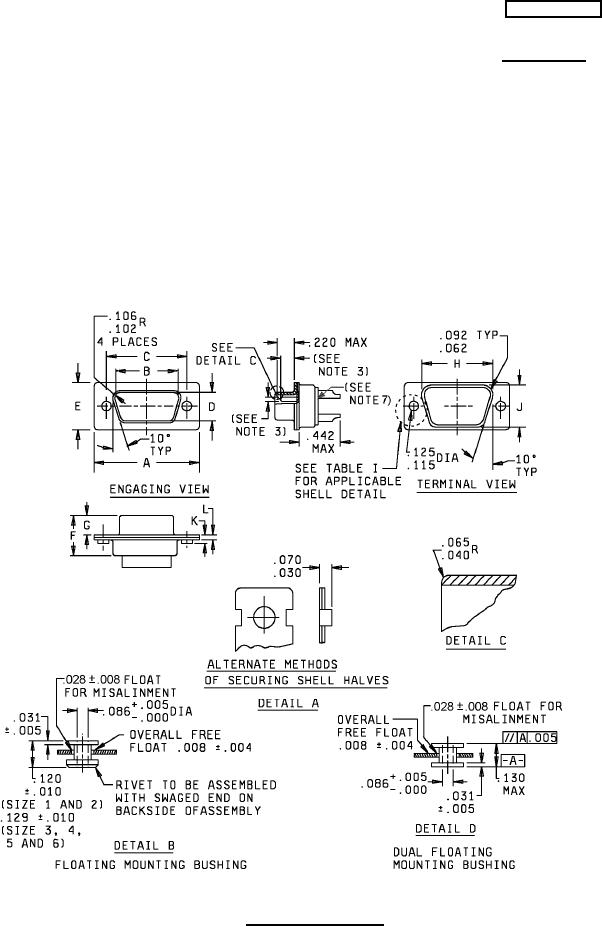

FIGURE 1. Shell, plug, solder type.
AMSC N/A
FSC 5935
