MIL-DTL-24308/31 Connectors, Electric, Rectangular, Miniature, Combination Insert Arrangement, Plug, Pin Contacts, Shell Size 2, Size 20 Signal Contacts and Size 8 Power and Shielded, Class G, M, N and D

1 - 2 - 3 - 4 - 5 - 6 - 7 - 8 - 9 - 10 - 11 - 12 - 13 - 14


MIL-DTL-24308/31

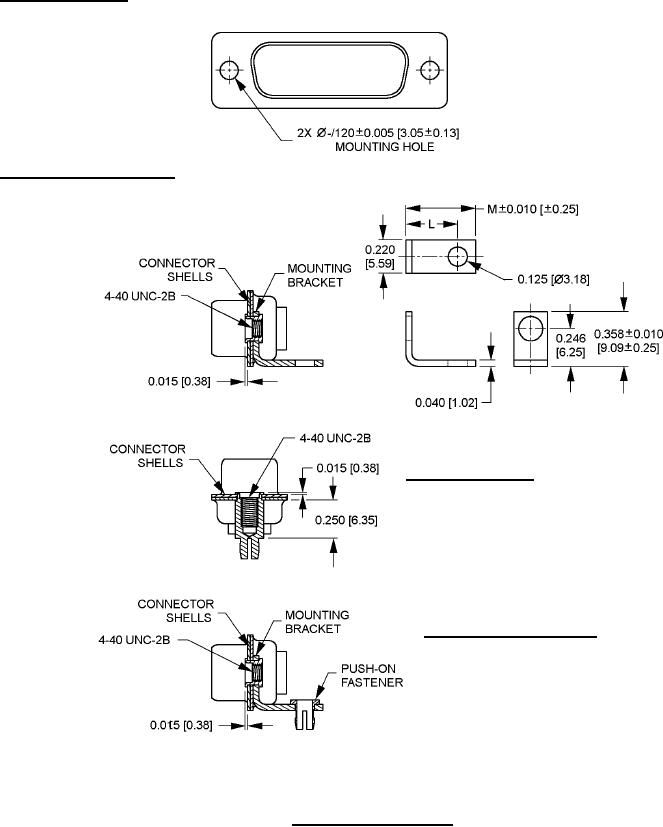

CONFIGURATION A:
Ø .120 (3.05 mm) mounting hole,
straight termination connectors
CONFIGURATION B AND C:
Mounting bracket and threaded
rivet,
right angle termination connectors
CONFIGURATION D:
Swaged spacer with push on
fastener, straight termination
connectors
CONFIGURATION E AND F:
Mounting bracket and threaded rivet
with push on fastener, right angle
termination connectors
FIGURE 5. Mounting configurations.
