MIL-DTL-24308/32 Connectors, Electric, Rectangular, Miniature, Combination Insert Arrangement, Receptacle, Socket Contacts, Shell Size 2, Size 20 Signal Contacts and Size 8 Power and Shielded, Class G, M, N and D

1 - 2 - 3 - 4 - 5 - 6 - 7 - 8 - 9 - 10 - 11 - 12 - 13 - 14


MIL-DTL-24308/32
M24308/32-001, -002, -007, -008
M24308/32-101, -102, -107, -108
M24308/32-003, -004, -005, -006, -009, -010, -011, -012
M24308/32-103, -104, 105, -106, -109, -110, -111, -112
3W3, 3WK3
M24308/32-201, -202, -207, -208
M24308/32-203, -204, -205, -206, -209, -210, -211, -212
7W2

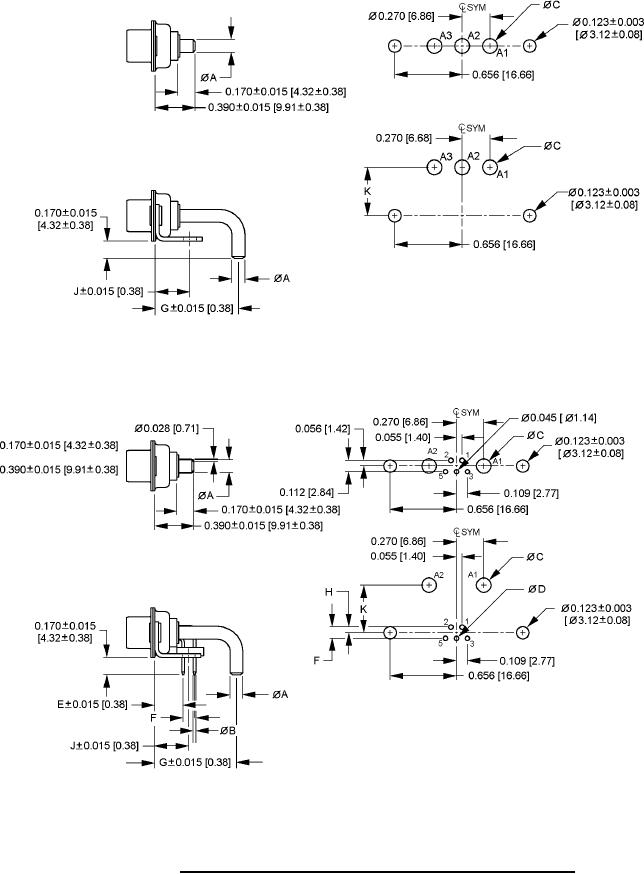

FIGURE 3. Termination and layout arrangements for power connectors.
3
